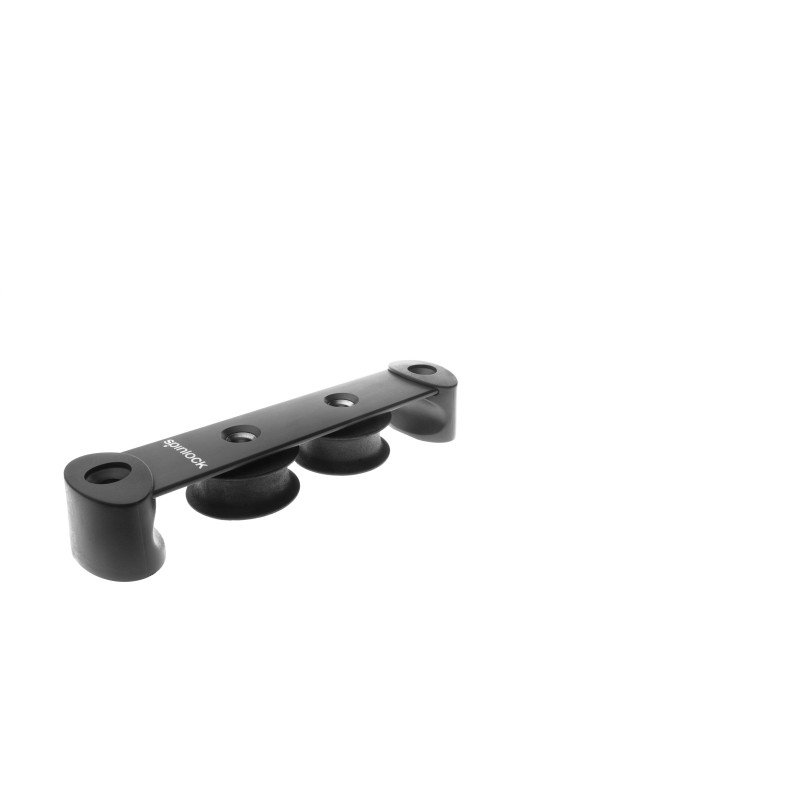

Spinlock small to medium size boat 2 sheave deck organiser

The Spinlock T38/2 is a compact and efficient deck organiser engineered for smooth,
low-friction line handling. Featuring two symmetric 38 mm composite sheaves, it reduces winch
effort and enhances the lifespan of halyards and control lines on performance sailing yachts.

Its low-profile construction includes integrated end fairings for safe side loading, while the
Vari-camber feature enables the organiser to conform naturally to both flat and curved decks.
The T38 range is also compatible with stacked installations, offering versatility for boats with
limited deck space or expanding deck layouts.

Key Features

• Symmetric 2-sheave design


• 38 mm low-friction composite sheaves


• Optimised bearing surfaces reduce winch effort


• Integral end fairings for safe side loading


• Low-profile design for compact installations


• Vari-camber feature adapts to curved decks


• Supports stacked configurations

Technical Specifications

• Model: T38/2


• Number of sheaves: 2 (symmetric)


• Sheave diameter: 38 mm (1 1/2") composite


• Line size compatibility: 6–12 mm


• SWL per sheave: 600 kg (1320 lb)


• Total SWL per unit: 600 kg (1320 lb)


• Weight: 115 g (4.0 oz)


• Fasteners (not supplied): 4 × M6 CSK
