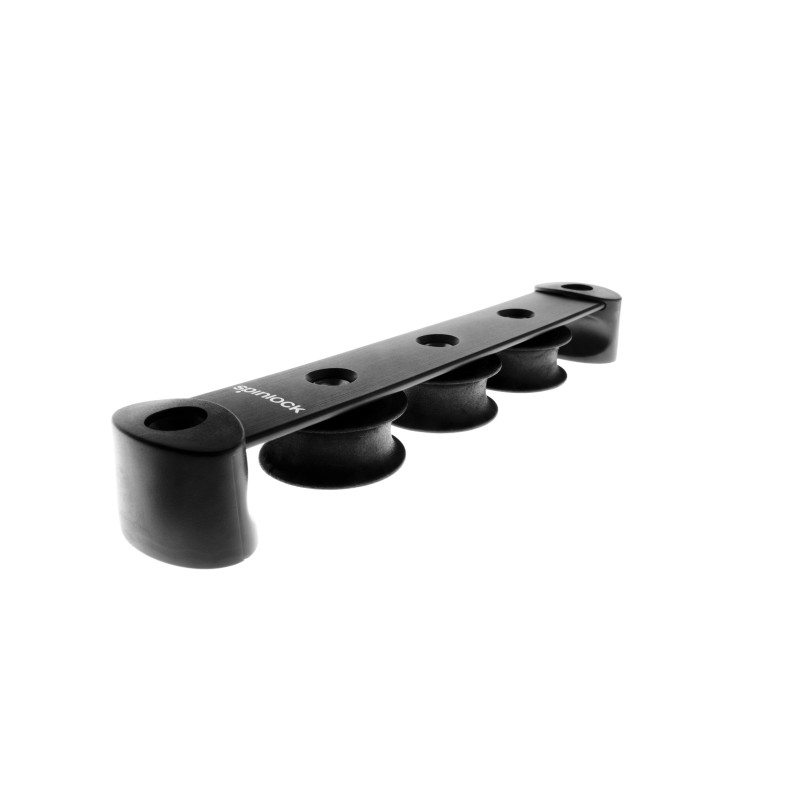

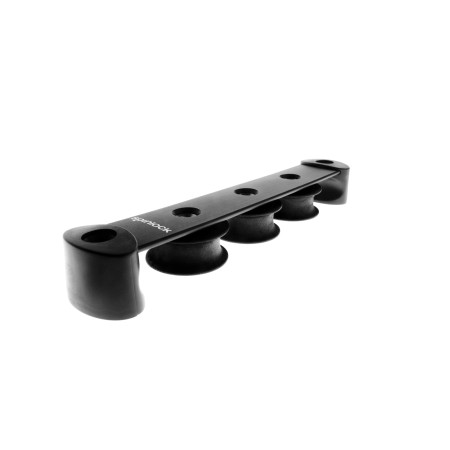

Spinlock small to medium size boat 3 sheave deck organiser

The Spinlock T38/3 is a compact and highly efficient deck organiser designed to manage multiple
lines with minimal friction and maximum control. Featuring three symmetric 38 mm composite sheaves,
it reduces winch effort and extends the working life of halyards and control lines.

Its low-profile design includes integrated end fairings for safe side loading, while the Vari-camber
feature allows the organiser to conform to both flat and curved decks. The T38 range also supports stacked
configurations, making it ideal for yachts with limited deck space or when additional line capacity is required.

Key Features

• Symmetric layout with 3 sheaves


• 38 mm low-friction composite sheaves


• Optimised bearing surfaces reduce winch effort


• Integral end fairings for safe side loading


• Low-profile construction for compact installations


• Vari-camber feature adapts to curved decks


• Compatible with stacked installations

Technical Specifications

• Model: T38/3


• Number of sheaves: 3 (symmetric)


• Sheave diameter: 38 mm (1 1/2") composite


• Line size compatibility: 6–12 mm


• SWL per sheave: 600 kg (1320 lb)


• Total SWL per unit: 900 kg (1980 lb)


• Weight: 154 g (5.4 oz)


• Fasteners (not supplied): 5 × M6 CSK
