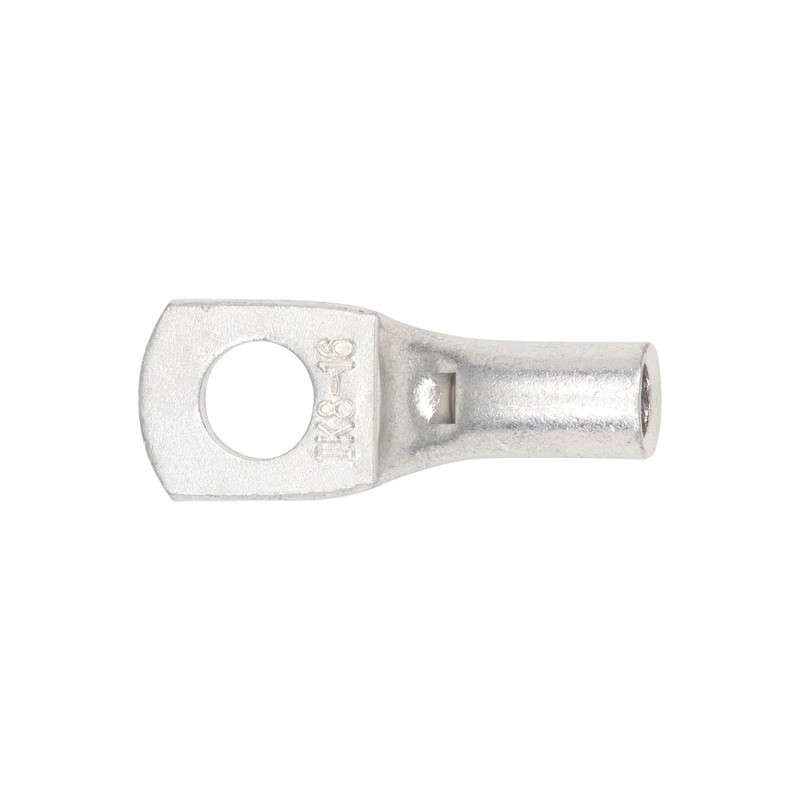

WÜRTH Pipe Cable Lug With Inspection Hole M8 16mm
zoom_out_map
WÜRTH Pipe Cable Lug With Inspection Hole M8 16mm
-20%

WÜRTH Pipe Cable Lug With Inspection Hole M8 16mm

€0.75 Tax included

€0.62 Tax excluded

€0.94 -20%

notifications_active Last items in stock
100% secure payments

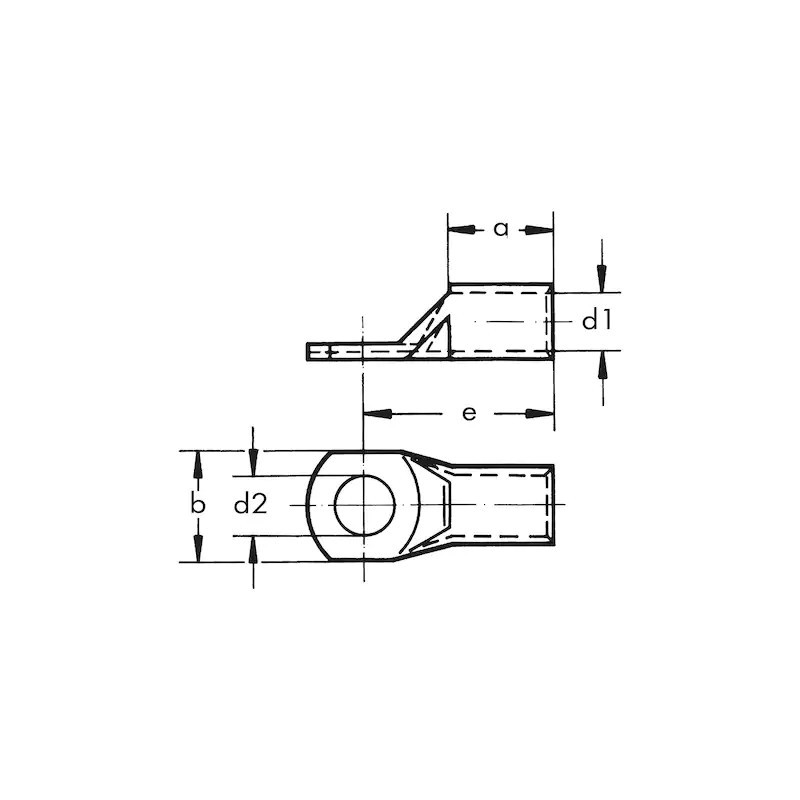

Wire cross section: 16 mm²
- Flange hole: M8
- Wire diameter (d1): 5.5 mm
- Diameter of hole (d2): 8.4 mm
- Distance between sleeve end and centre of hole (e): 29 mm
- Sleeve length (a): 13 mm
- Width (b): 15 mm
- Max. temperature resistance: 125 °C
- Material: Electrolytic copper
- Surface: Tin plated
WÜRTH
09671168
New
20 Items
