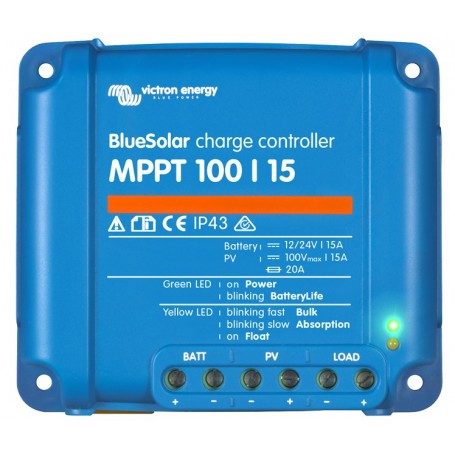

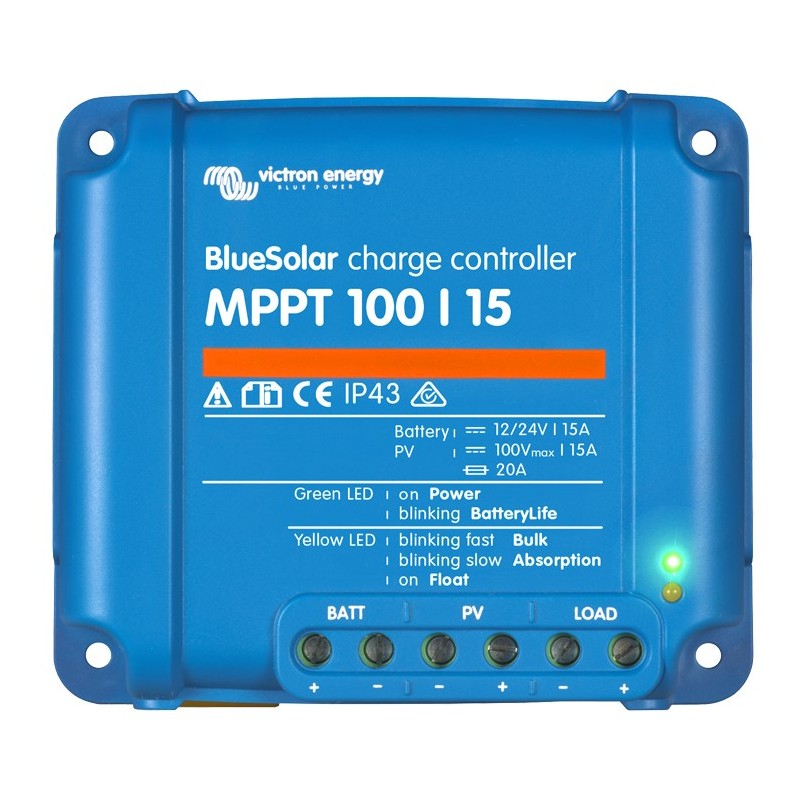

Bluesolar mppt charger 100v/15a (12/24-15a) victron
zoom_out_map
Bluesolar mppt charger 100v/15a (12/24-15a) victron
Bluesolar mppt charger 100v/15a (12/24-15a) victron
*Image shown is for representation only; actual product may vary.

Bluesolar mppt charger 100v/15a (12/24-15a) victron

€79.86  Tax included

€66.00 Tax excluded

new_releases  Available under demand
Free in-store pickup
International shipping
100% secure payment
14-day easy returns
BlueSolar MPPT 100/15 charge controller. Dimensions 100x113x47 mm. Weight 0.6 kg.

Battery voltage: Automatic selection: 12/24 V.
Rated load current: 15A.
Nominal PV power, 12V: 220W.
Nominal PV power, 24V: 440W.
Max. Short circuit current: 15A.
Automatic load disconnection: Yes, maximum load 15A.
Maximum PV open circuit voltage: 100V.
Maximum efficiency: 98%.
Self-consumption: 12V: 20 mA 24V: 10 mA.
"Absorption" charging voltage: 14.4V / 28.8V (adjustable).
"Float" charging voltage: 13.8V / 27.6V (adjustable).
Charging algorithm: multistage variable.
Temperature compensation: -16 mV / ° C, -32mV / ° C resp.
Continuous / Peak Charge Current: 15A / 50A.
Low voltage load shedding: 11.1V / 22.2V or 11.8V / 23.6V
or BatteryLife algorithm.
Low voltage charge reconnection: 13.1V / 26.2V or 14V / 28V
or BatteryLife algorithm.
Protection: Reverse polarity of the battery (fuse).
Output short circuit / overheating.
Working temperature: -30 to + 60 ° C (full nominal power up to 40 ° C).
Humidity: 95%, non-condensing.
