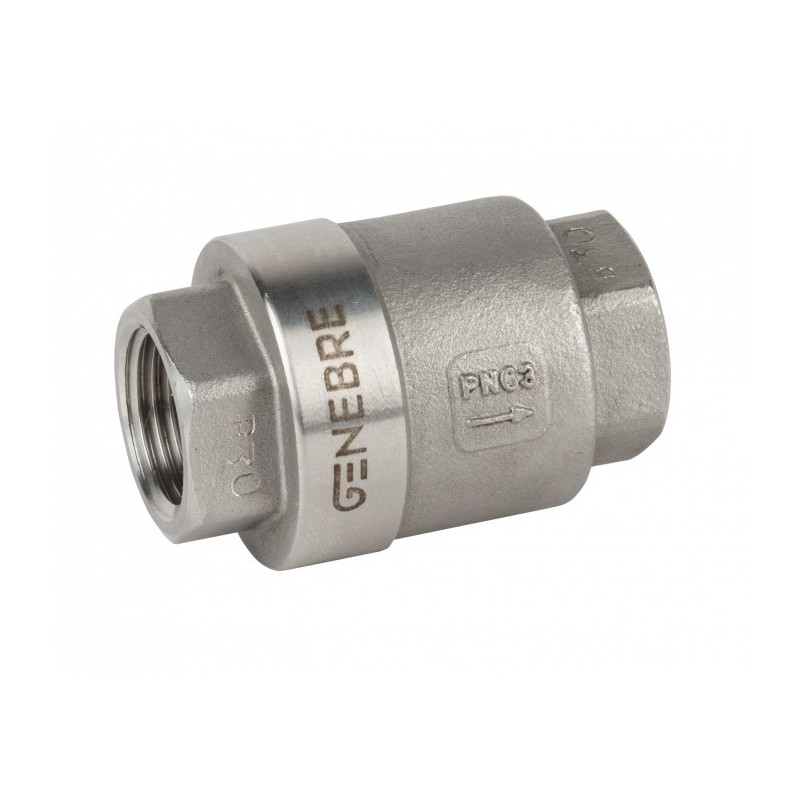

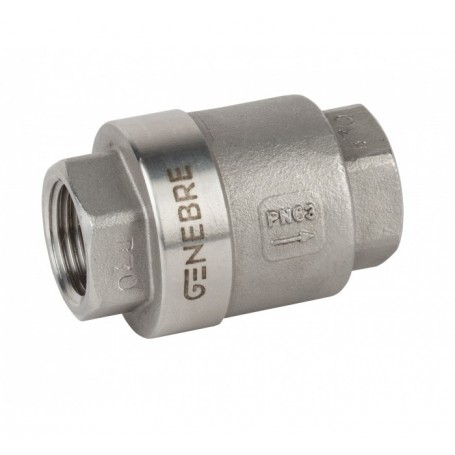

Single disk check valve, threaded ends S.Steel 1"1/4

Features:
1. Single disk check valve.
2. Threaded ends acc. to ISO 7-1 (EN 10226-1).
3. Made of Stainlees Steel 1.4408 (CF8M).
4. Disk made of Stainlees Steel 1.4408 (CF8M).
5. Spring made of Stainless Steel AISI 316.
6. Small dimensions.
7. Metal to metal sealing.
8. Max. working pressure 63 bar.
9. Working Temperature -20ºC +240ºC

Weight (Kg): 0.660
Measure / Size: 1 1/4 "

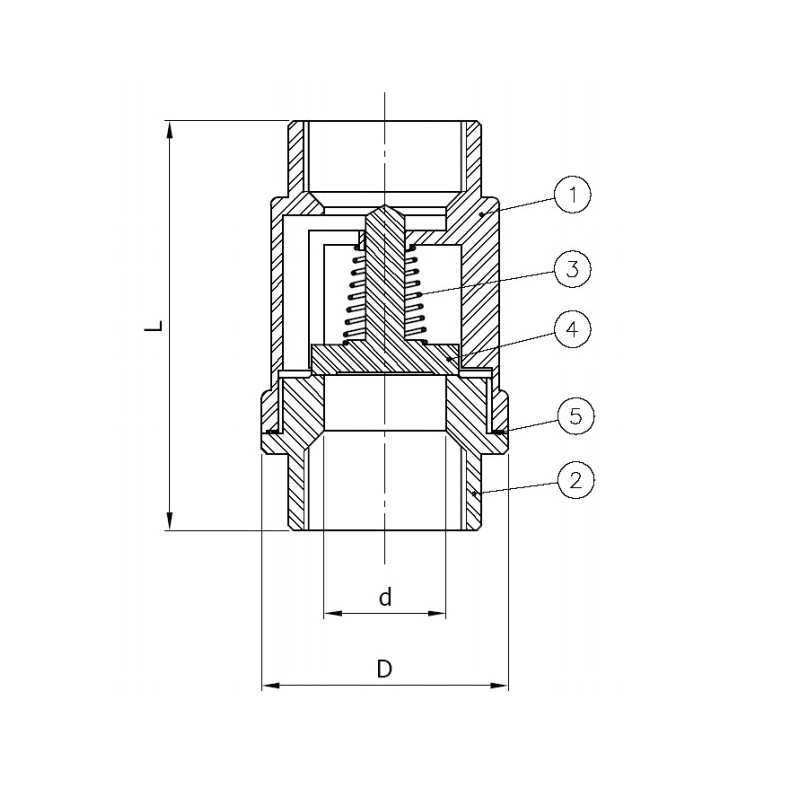

Dimensions (mm):
d: 30
D: 58
L: 81
Opening Pressure (mbar): 35 ~ 40
