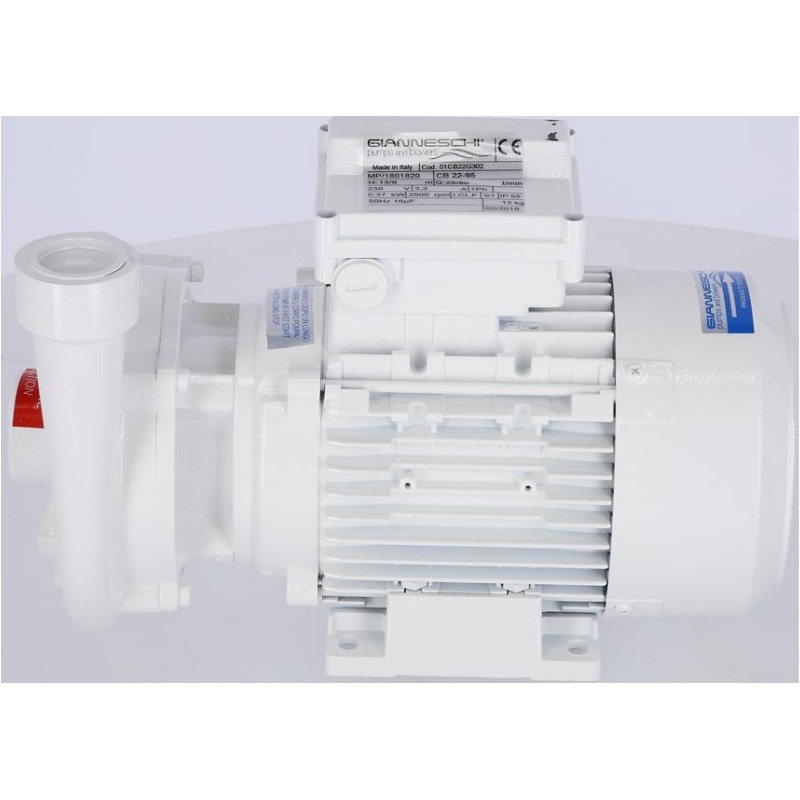

GIANNESCHI CB 22-120 230/400v 50Hz 3Ph 0.55kw 2P

Pumps of the Gianneschi CB series
End suction pumps: non-self-priming.

Body and impeller in bronze - Shaft in stainless steel.

Typical applications: clear distribution of fresh/salt water (capable of handling small suspended particles), refrigerant for air-conditioning systems.
AC versions can be used in continuous duty applications.

GIANNESCHI CB22-95
Voltage: 230 V.
Frequency: 50Hz
Power: 0,37 kW
Maximum output: 100 L / min at 0,6 bar
Maximum pressure 1,3 bar at 16 L / min
Inlet / Outlet: 1 ''.
Dim.WxDxH: 300x160x161 mm
Weight: 13 kilograms
Pressures given are total head converted to bar (10 m = 1 bar).

60 Hz motors available on request.
