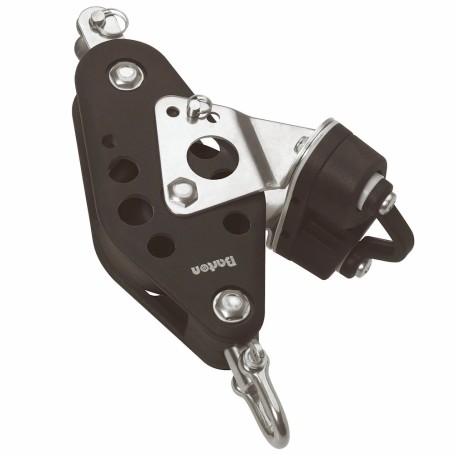

Barton Size 5 38/64mm Plain Bearing Pulley block Fiddle Block And Cams

The Size 5 Barton range of blocks have a 54mm 2 1/8" sheave. They are a rugged construction, featuring high grade moulded side plates that are through-bolted and riveted for added strength and security. All load carrying components and interior frame are from marine grade 316 stainless steel and both plain and ball bearing sheaves are available. This sleek and versatile range is engineered for use on larger cruising and racing yachts and is compatible with our ball bearing mainsheet traveller system.

Suitable for up 12mm ?7/16" rope. Weight497 g
Dimensions208 × 115 × 81 mm
Size
5 (54MM)

Block Type
Swivel + Becket + Cam

No. of Sheaves
Fiddle

Bearing Type
Plain

Sheave Size
54mm x 17mm (2 1/8" x 5/8")

Max rope diameter
12mm (7/16")

SWL
750kg (1650lbs)

Break load
1500kg (3300lbs)

Max rolling load (ball bearing blocks)
525kg (1157lbs)

Brand
Barton
