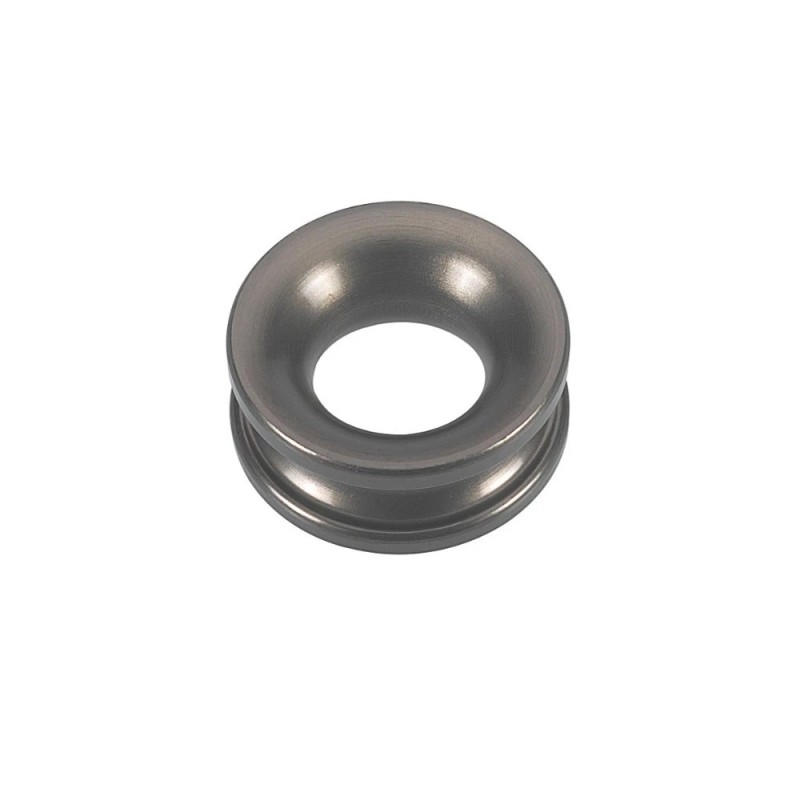

Barton High Load Eye 9mm Bore

Available in six sizes. Manufactured in marine grade aluminium with a hard anodised finish. These lightweight high load eyes are suitable for a variety of uses on board, from lazy jacks, barber haulers, mast base tidies to stanchion lead eyes. The smallest size can be attached using a 3mm line with a bullseye diameter of 6mm. The largest size can be attached using a 16mm line with a bullseye diameter of 28mm. Weight3 g
Dimensions18 × 18 × 8 mm
External Diameter (mm)
18mm

Internal Diameter (mm)
4mm

Bore Diameter (mm)
9mm

SWL
550kg (1212lbs)

Brand
Barton

Max rope diameter
4mm (5/32")
