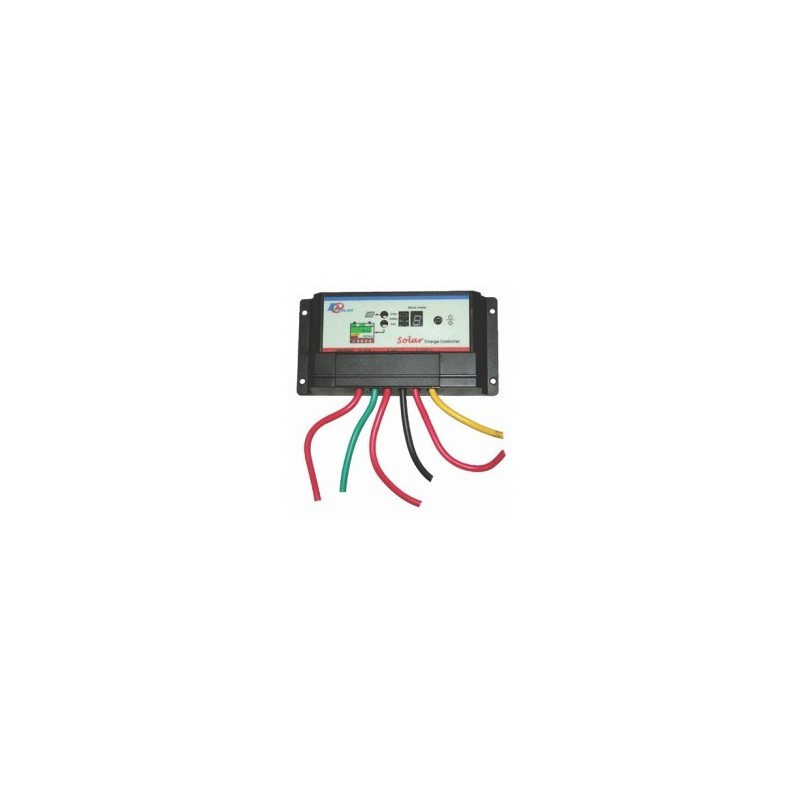

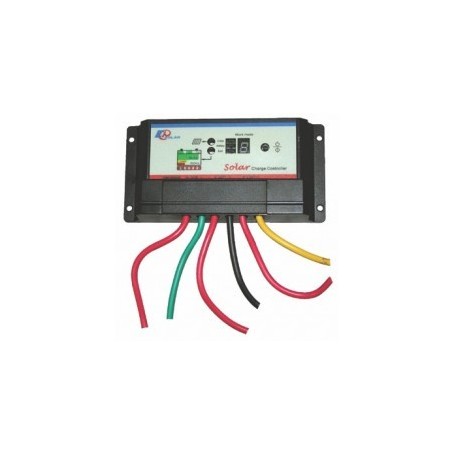

Solar charge controller 12/24 v

Solar Charge Controller 12/24V

Technical Specifications:

- Type of Charging: 4 stages PWM charging (Bulk – PWM – Boost – Float)
- Rated Solar Input: 10A
- Rated Load: 10A
- Regulation Voltage: 14.4V
- Load Disconnect: 11.08V
- Load Reconnect: 12.58V
- Self-Consumption: Max. 6mA
- Temperature: -35 to +55
- Terminals: For 2.5mm2 cables
- Protection against short circuit, over current, overload, reverse polarity, battery reverse current at night, high load voltage
- LED indications for charging, battery levels, low voltage, disconnect, e.t.c
- Weight: 250gr
- Dimensions: 140x70mm

General Characteristics:

- Automatic Lighting control function
- Ideal for areas with increased humidity, such as boats, outdoor pathway lighting, parking areas e.t.c
- Suitable for 12/24V lamps
- Selection of the battery type (Sealed & Gel)
- Waterproof (IP67)
- 100% Protection against humidity
