Wurth Hexagonal Nut Din 934 I8I

TU-HEX-DIN934-I8I-LL17-(A2K)-M10

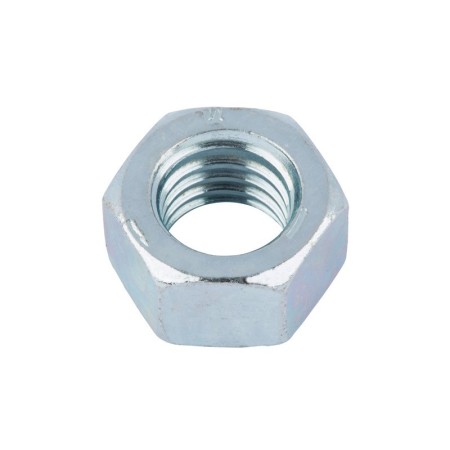

Hexagon nut
DIN 934, steel I6I/I8I, blue passivated zinc-plated (A2K)
Can be stored in the ORSY® system


Hex nuts in accordance with DIN 934 do not withstand test loads in accordance with DIN EN ISO 898-2.


The strength class designation has two vertical bars before and after the strength code to differentiate it.

DIN 934 has been withdrawn and replaced by ISO 4032/8673. There is no similarity (nominal diameter changed | Some nut heights changed | Key width changed for M10, M12, M14, M22 | ISO 4032 for standard thread | ISO 8673 for fine thread).
