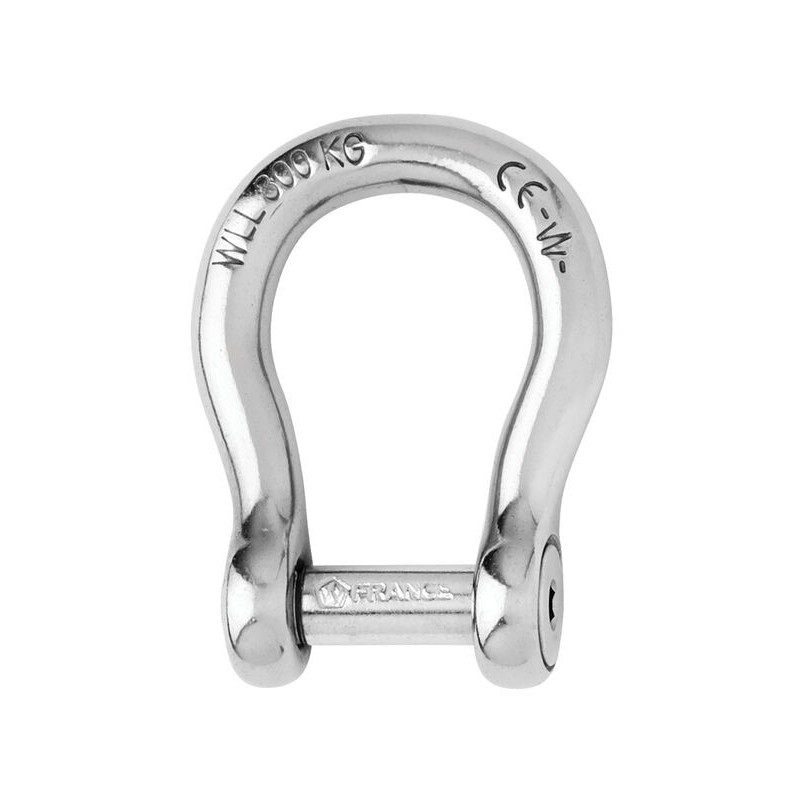

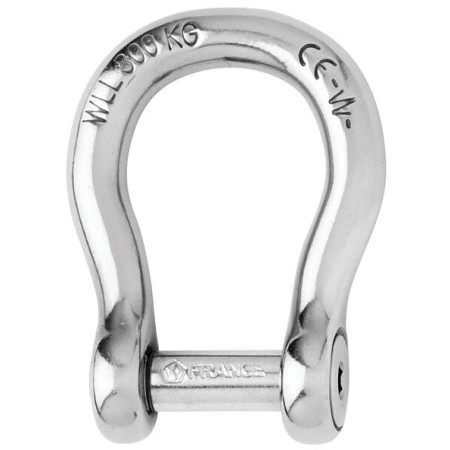

Wichard Self-locking allen head pin bow shackle Ø12mm

Self-locking shackle with hexagonal pin in 316L stainless steel. Forged from high-quality stainless steel, this shackle guarantees maximum safety and strength in industrial applications.

The pin fits flush with the body of the shackle, eliminating any risk of snagging. Its design also prevents loosening due to vibration, offering outstanding working and breaking loads. CE marked.

Technical specifications

Material: 316L stainless steel
Working load (kg) 2080
WLL (kg) 1200
Breaking load (kg) 6000
Weight (g) 222

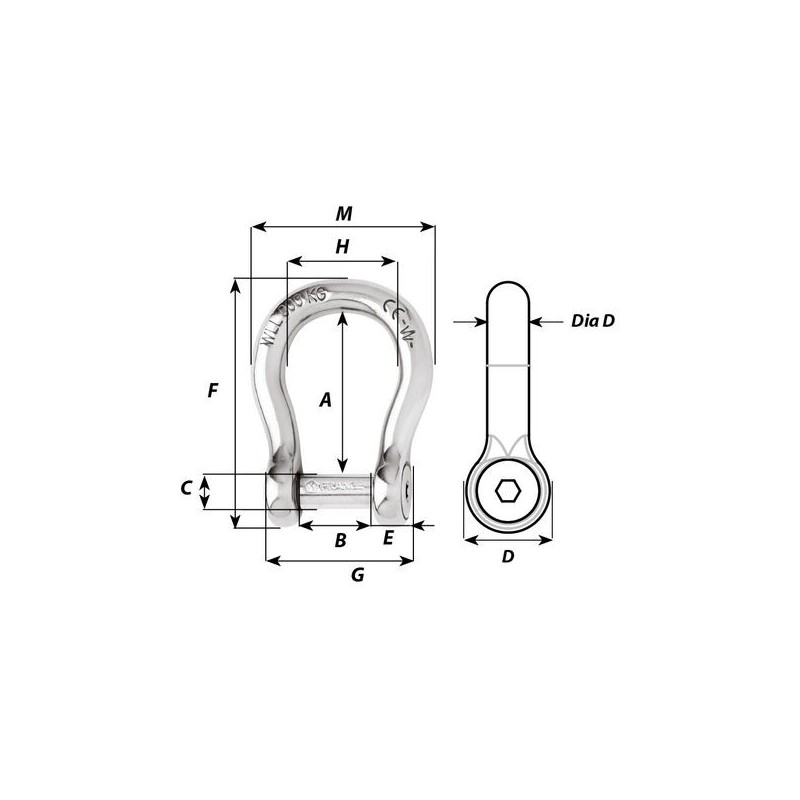

A (mm) 55
B (mm) 27.2
C (mm) 12
D (mm) 24
Diameter D (mm) 12
E (mm) 10
F (mm) 87
G (mm) 50
M (mm) 63
