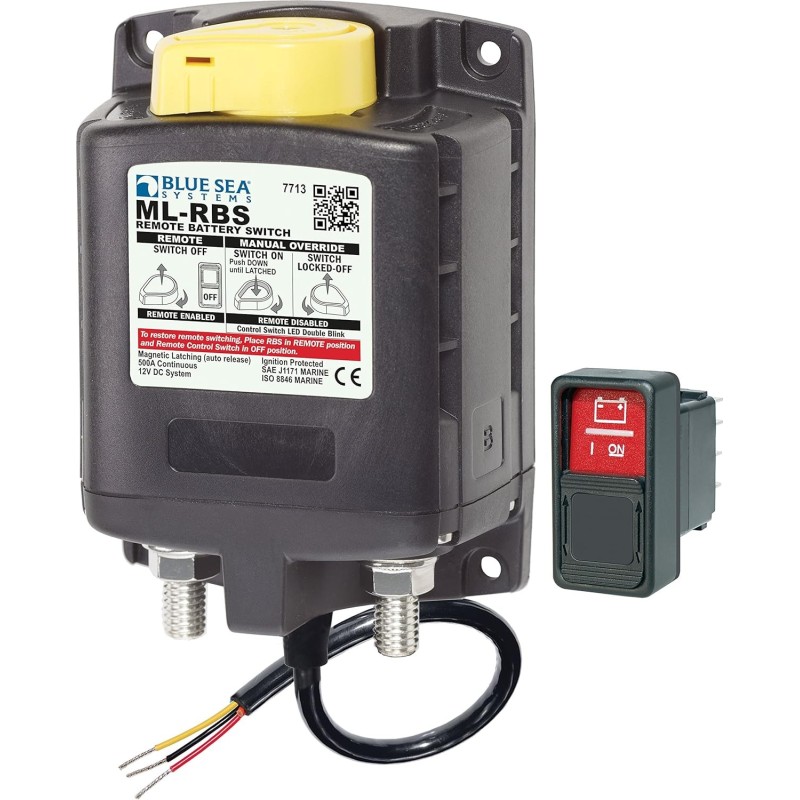

Blue Sea Systems 7713 ML-RBS Remote Battery Switch 12V 500A

The Blue Sea Systems 7713 remote battery switch is part of the ML-RBS series, designed for managing high-current electrical systems in marine applications. It allows safe connection and disconnection of battery banks, even under load.

It features Magnetic Latch technology, significantly reducing power consumption in standby. Silver alloy contacts ensure reliable and durable switching performance under demanding conditions.

The unit includes remote control operation as well as an integrated manual override, allowing ON/OFF operation even without power. An LED output is also provided for remote indication of switch status.

• Part number: 7713


• Type: remote battery switch with manual control


• Voltage: 12V DC


• Switching capacity under load up to 300A


• Low-power Magnetic Latch technology


• Remote control via SPST or SPDT switch


• Manual override with LOCK OFF function


• Tin-plated copper terminals for corrosion resistance


• High durability and reliability
