Brass Ball Valve with Blue Handle – Female 3/4" Genebre

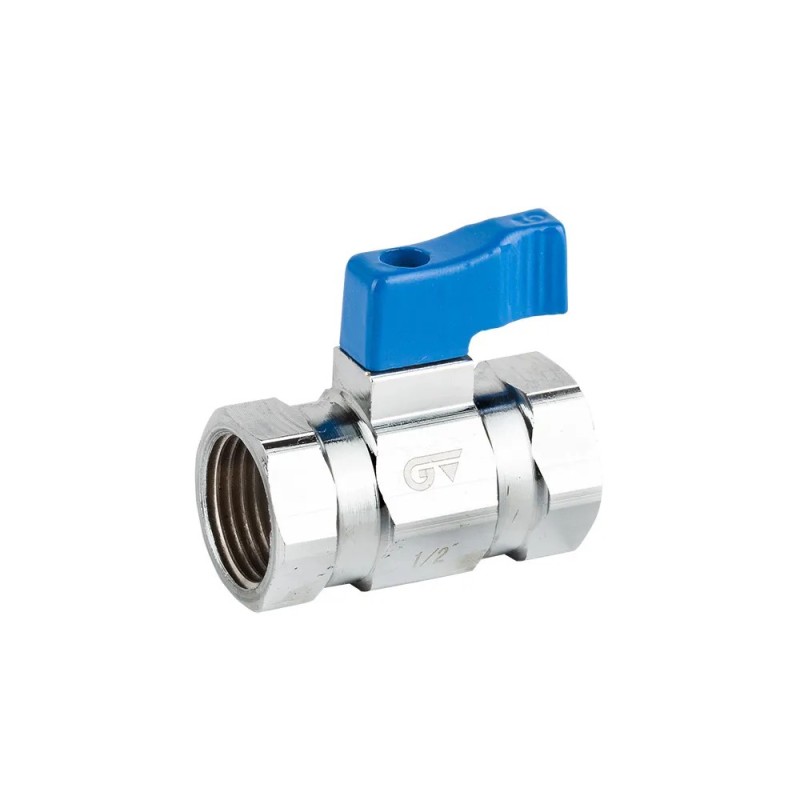

<h2>Mini Brass Ball Valve with Blue Handle – Female BSP Thread PN16</h2>

<p>The <strong>mini brass ball valve with blue handle</strong> is a compact and reliable shut-off valve designed for controlling the flow of water, air, and other compatible fluids. Its <strong>reduced bore</strong> design makes it ideal for installations where space is limited while ensuring secure sealing and smooth operation.</p>

<p>Manufactured from <strong>chrome-plated CW617N brass</strong> in accordance with <strong>UNE-EN 12165</strong>, this valve offers excellent corrosion resistance and long-lasting durability. It features a <strong>painted aluminium handle</strong> for easy manual operation and <strong>PTFE seats</strong> that provide low-friction performance and a leak-tight seal.</p>

<p>The valve is fitted with <strong>female BSP (G) threaded connections</strong> according to <strong>ISO 228/1</strong>. It has a maximum working pressure of <strong>16 bar (PN16)</strong> and is suitable for operating temperatures ranging from <strong>-20°C to +110°C</strong>.</p>

<p>It also complies with <strong>Royal Decree RD 3/2023</strong>, establishing the criteria for the quality of water intended for human consumption.</p>

<h3>Key Features</h3>

<ul>
<li>Mini ball valve with reduced bore.</li>
<li>Compact and space-saving design.</li>
<li>Maximum working pressure: <strong>16 bar (PN16)</strong>.</li>
<li>Chrome-plated CW617N brass body.</li>
<li>Chrome-plated brass ball.</li>
<li>Female BSP (G) threaded ends according to ISO 228/1.</li>
<li>Blue painted aluminium handle.</li>
<li>PTFE seats for smooth operation and reliable sealing.</li>
<li>NBR O-ring seal.</li>
<li>Operating temperature: <strong>-20°C to +110°C</strong>.</li>
<li>Suitable for drinking water applications.</li>
<li>Complies with RD 3/2023.</li>
</ul>

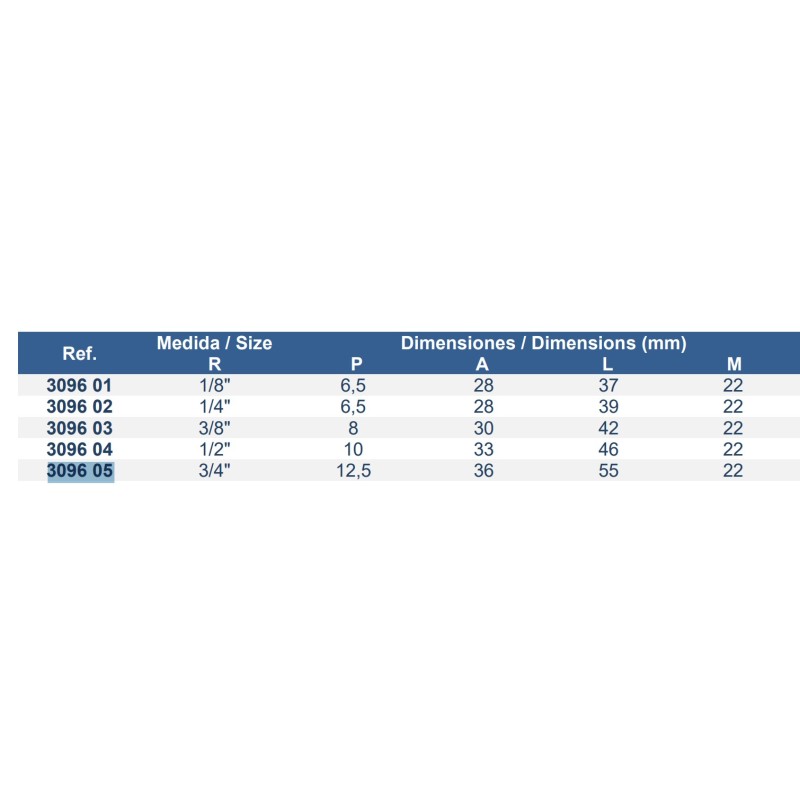

<h3>Technical Specifications</h3>

<table>
<tbody>
<tr>
<th>Part Number</th>
<td>3096</td>
</tr>
<tr>
<th>Product Type</th>
<td>Mini Ball Valve</td>
</tr>
<tr>
<th>Bore Type</th>
<td>Reduced Bore</td>
</tr>
<tr>
<th>Body Material</th>
<td>Chrome-plated CW617N Brass</td>
</tr>
<tr>
<th>Ball Material</th>
<td>Chrome-plated Brass</td>
</tr>
<tr>
<th>Stem Material</th>
<td>Brass</td>
</tr>
<tr>
<th>Seat Material</th>
<td>PTFE</td>
</tr>
<tr>
<th>O-Ring Material</th>
<td>NBR</td>
</tr>
<tr>
<th>Handle Material</th>
<td>Painted Aluminium</td>
</tr>
<tr>
<th>Handle Colour</th>
<td>Blue</td>
</tr>
<tr>
<th>Connection Type</th>
<td>Female BSP (G) Thread</td>
</tr>
<tr>
<th>Thread Standard</th>
<td>ISO 228/1</td>
</tr>
<tr>
<th>Maximum Working Pressure</th>
<td>16 bar (PN16)</td>
</tr>
<tr>
<th>Operating Temperature</th>
<td>-20°C to +110°C</td>
</tr>
<tr>
<th>Standards</th>
<td>UNE-EN 12165, ISO 228/1, RD 3/2023</td>
</tr>
</tbody>
</table>

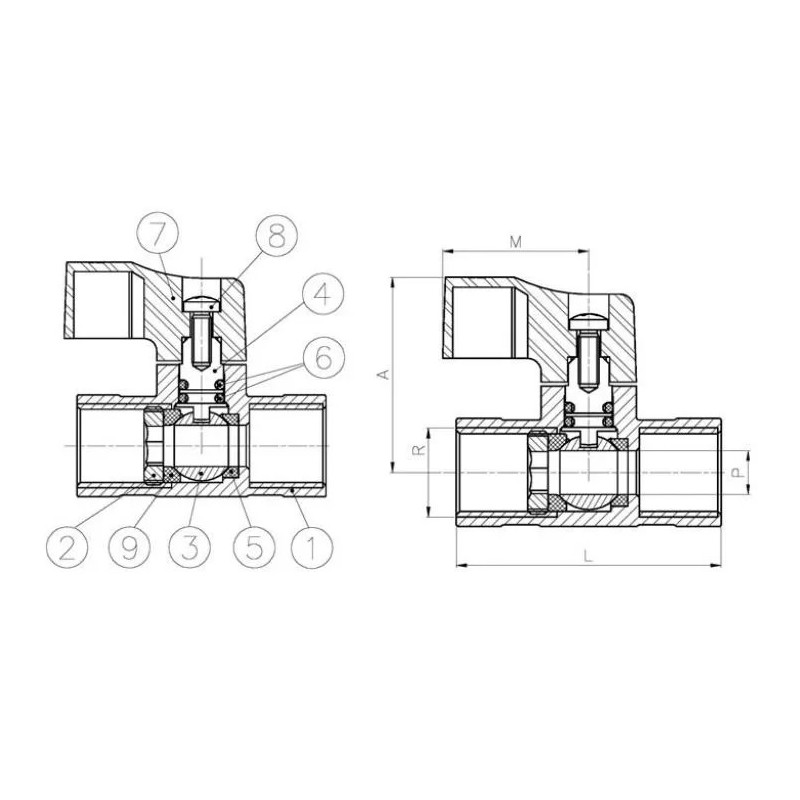

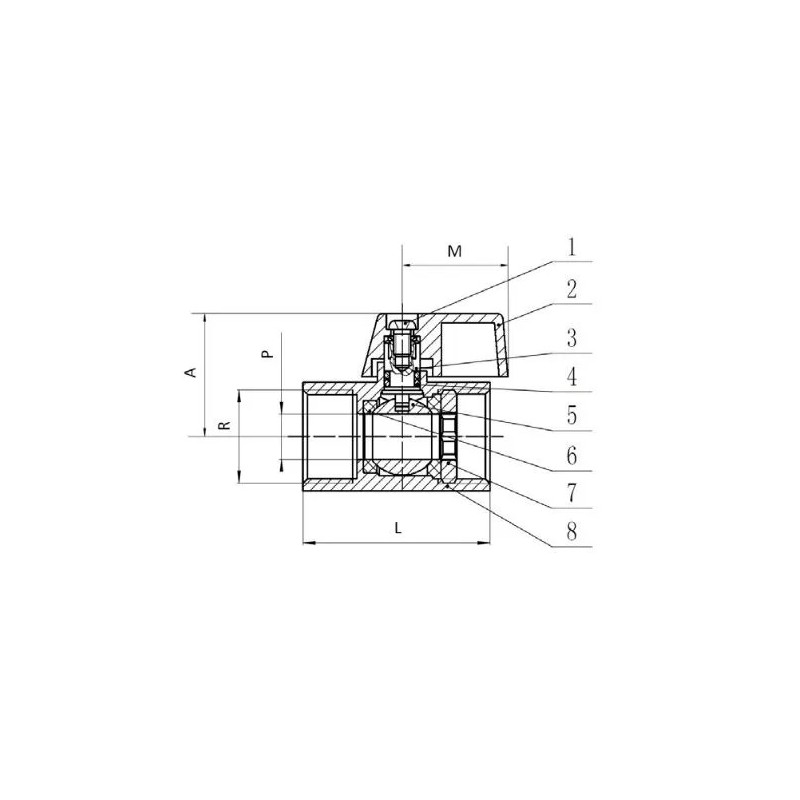

<h3>Materials and Finishes</h3>

<table>
<thead>
<tr>
<th>Component</th>
<th>Material</th>
<th>Surface Finish</th>
</tr>
</thead>
<tbody>
<tr>
<td>Body</td>
<td>CW617N Brass</td>
<td>Chrome-plated</td>
</tr>
<tr>
<td>Cap</td>
<td>Brass</td>
<td>Natural</td>
</tr>
<tr>
<td>Ball</td>
<td>Brass</td>
<td>Chrome-plated</td>
</tr>
<tr>
<td>Stem</td>
<td>Brass</td>
<td>Natural</td>
</tr>
<tr>
<td>Seats</td>
<td>PTFE</td>
<td>Natural</td>
</tr>
<tr>
<td>O-Ring</td>
<td>NBR</td>
<td>Natural</td>
</tr>
<tr>
<td>Handle</td>
<td>Aluminium</td>
<td>Painted</td>
</tr>
<tr>
<td>Screw</td>
<td>AISI 201 Steel</td>
<td>Natural</td>
</tr>
</tbody>
</table>

<h3>Recommended Applications</h3>

<p>Ideal for domestic, industrial, marine, plumbing, HVAC and general fluid control systems requiring a compact shut-off valve for water, air and other compatible media.</p>
