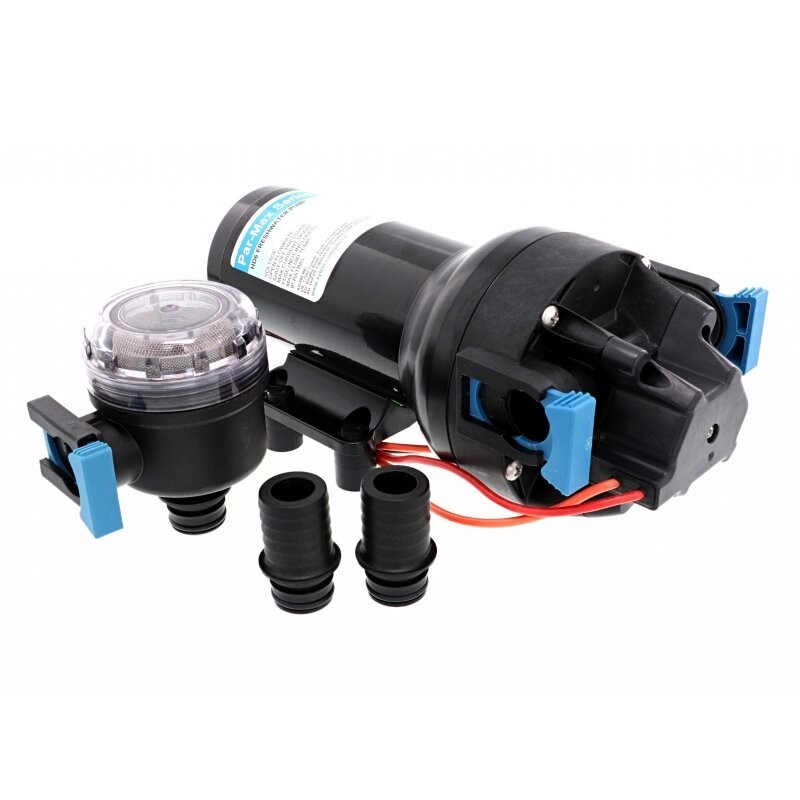

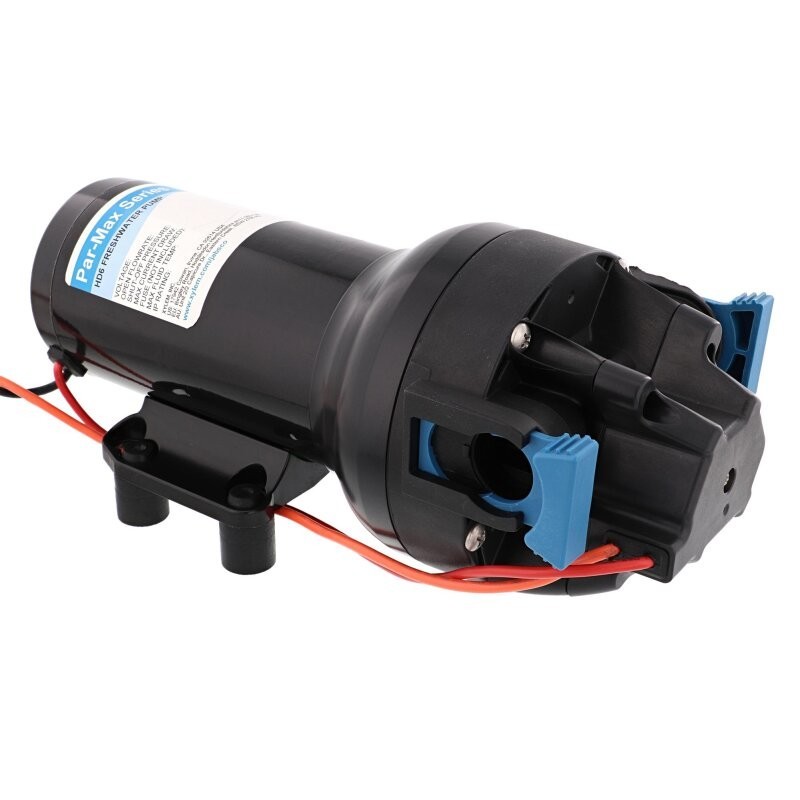

Jabsco HD6 Water Pressure Pump 24V 60PSI

The Jabsco PAR-Max HD6 P602J-218S-3A is a heavy-duty 24 V DC freshwater pressure pump designed to deliver high flow and consistent water pressure for marine freshwater systems. Its 5-chamber diaphragm and integrated bypass provide smooth, quiet water delivery while reducing pump cycling, making it ideal for boats with multiple outlets such as showers, sinks, and galley faucets.

Delivering up to 22.7 L/min (6 GPM) at a maximum pressure of 60 PSI (4.1 bar), this self-priming pump can lift water up to 2.1 m and is capable of running dry without damage. Built with a heavy-duty coated motor, cast aluminum lower housing, and corrosion-resistant materials, it is designed for long service life in demanding marine environments. Quick-connect hose fittings simplify installation, while thermal overload protection and an integrated sealed pressure switch ensure safe, reliable operation.

Key Features:

Brand: Jabsco
Model: PAR-Max HD6
Part number: P602J-218S-3A
Heavy-duty 5-chamber diaphragm pump
Power supply: 24 V DC
Flow rate: 22.7 L/min (6 GPM)
Maximum pressure: 60 PSI (4.1 bar)
Self-priming up to 2.1 m (7 ft)
Runs dry without damage
Integrated bypass for smoother flow and reduced cycling
Sealed pressure switch for automatic on-demand operation
Heavy-duty coated motor with cast aluminum lower housing
Corrosion-resistant construction
Thermal overload motor protection
Quick-connect 19 mm (3/4") hose fittings

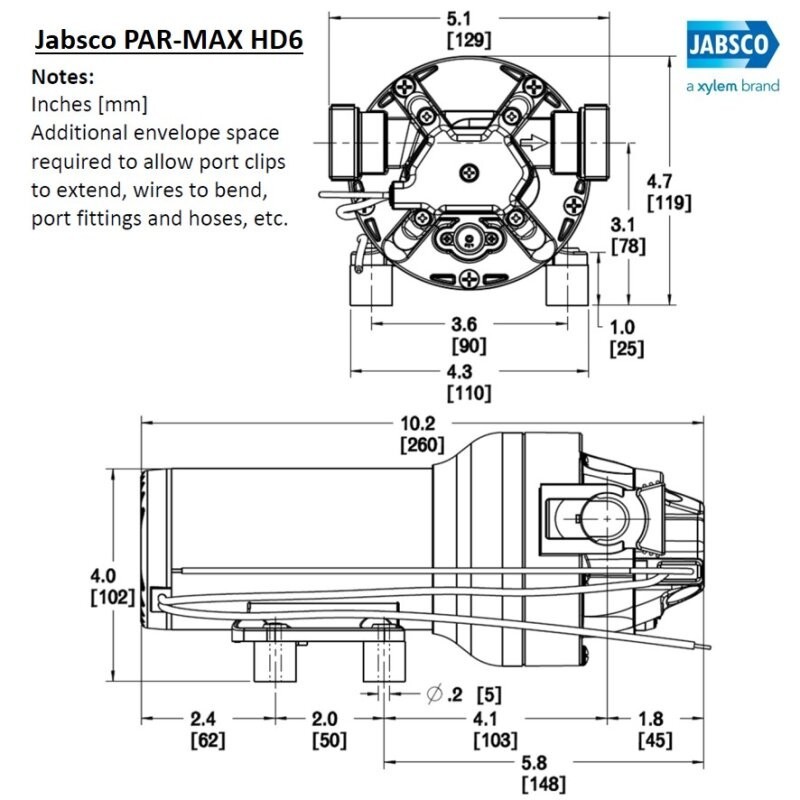

Dimensions: 260 × 129 × 119 mm
Weight: 3.2 kg
Ideal for marine freshwater pressure systems with multiple outlets.
