The RA106 series antennas are reliable and solid, ideal for any type of boat, whether a sailboat or a motorboat and for tenders as well (version RIB).

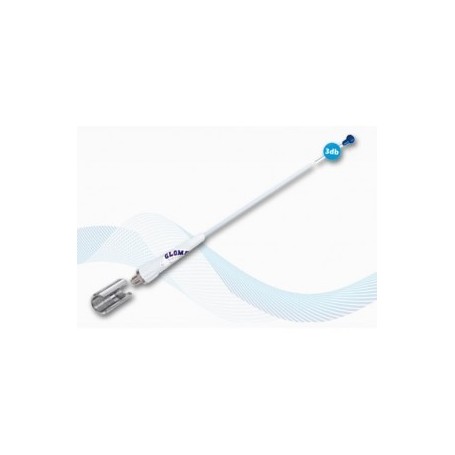

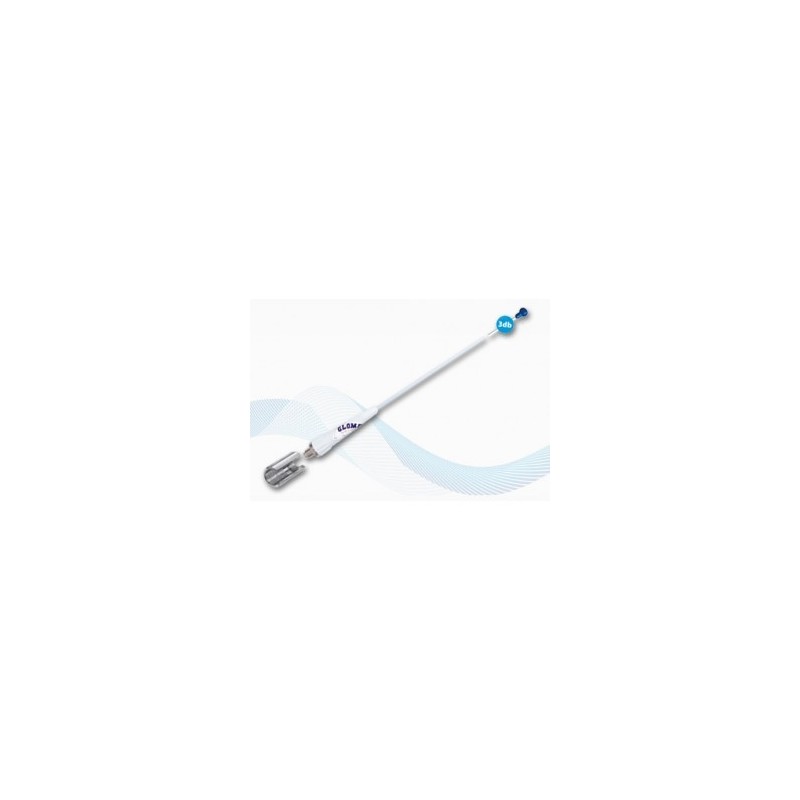

RA106GRPPB is a VHF antenna designed for motorboats with a fibreglass rod which takes advantage of white polyurethane paint, assuring a total protection of the antennas inside copper components. It's equipped with Glomex RA106 solderless special connector, waterproof and solderless, easing the installation.
SUPPLIED ACCESSORIES:
- PL259 male nichel-plated CONNECTOR (code RA132)
- PVC rubber protection for connector (code RA138)
- NYLON FEED-THRU (code RA140)
- STAINLESS STEEL ADAPTOR. STANDARD 1"X14 THREAD (code RA106ADAPT1X14)
TECHNICAL SPECIFICATIONS
FREQUENCY RANGE: 156/162 MHz
GAIN AVERAGE: 3dB
IMPEDANCE: 50 ohms
POLARIZATION: Vertical
SWR: = 1,3 at 156,8 MHz
MAX INPUT POWER: 100 W
DC GROUND: Yes
ANTENNA LENGHT:1m/3'
ANTENNA WEIGHT:900mm/35''
TERMINATION: RA106 solderless connector
