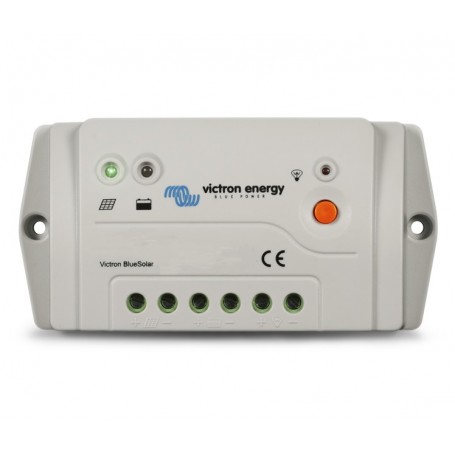

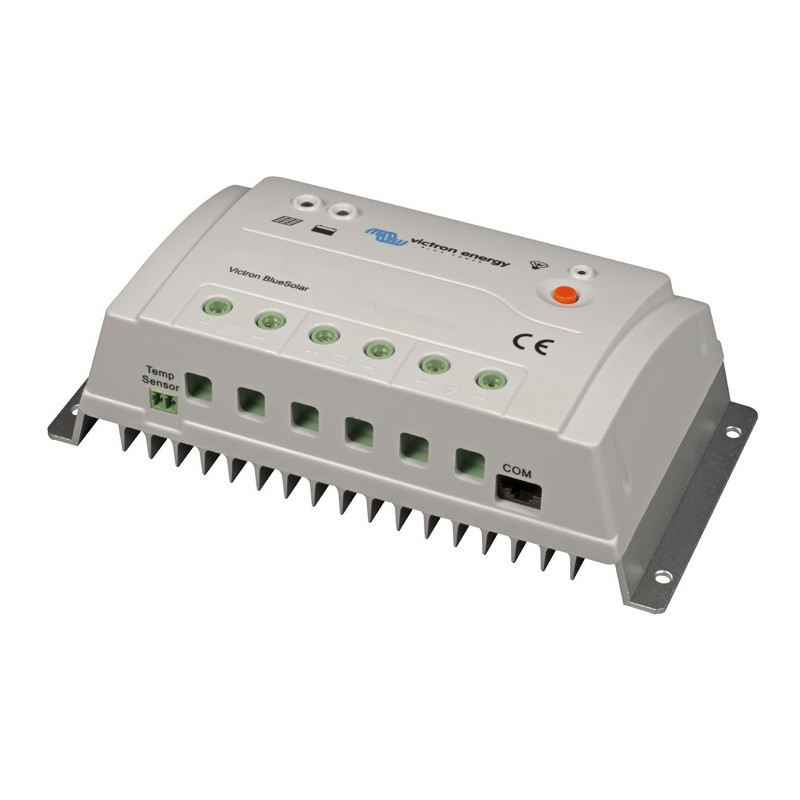

BlueSolar PWM-Pro 12 / 24V-20A charge controller. Dimensions 82x160x48 mm. Weight 0.3 kg. It is also fully programmable:
- Using a computer and a computer program (freely available on our website).
- Through the exclusive BlueSolar-Pro remote panel (see features below).
Battery voltage: 12 / 24V with automatic input voltage detection.
Nominal load current: 20 A.
Automatic load disconnection: Yes.
Maximum solar voltage: 28 V / 55 V.
Self-consumption: <10 mA.
Load output: Manual control + low voltage disconnect.
Protection: Reverse polarity of the battery (fuse). Output short circuit. Overtemperature
Grounding: Common positive.
Temp range working temperature: -20 to + 50 ° C (full load).
Humidity (non-condensing): Max. 95%.
BATTERY
"Absorption" charging voltage: 14.2 V / 28.8 V.
"Float" charging voltage: 13.8 V / 27.6 V.
Low voltage load shedding: 11.1 V / 22.2 V.
Low voltage charge reconnection: 12.6V / 25.2V.
