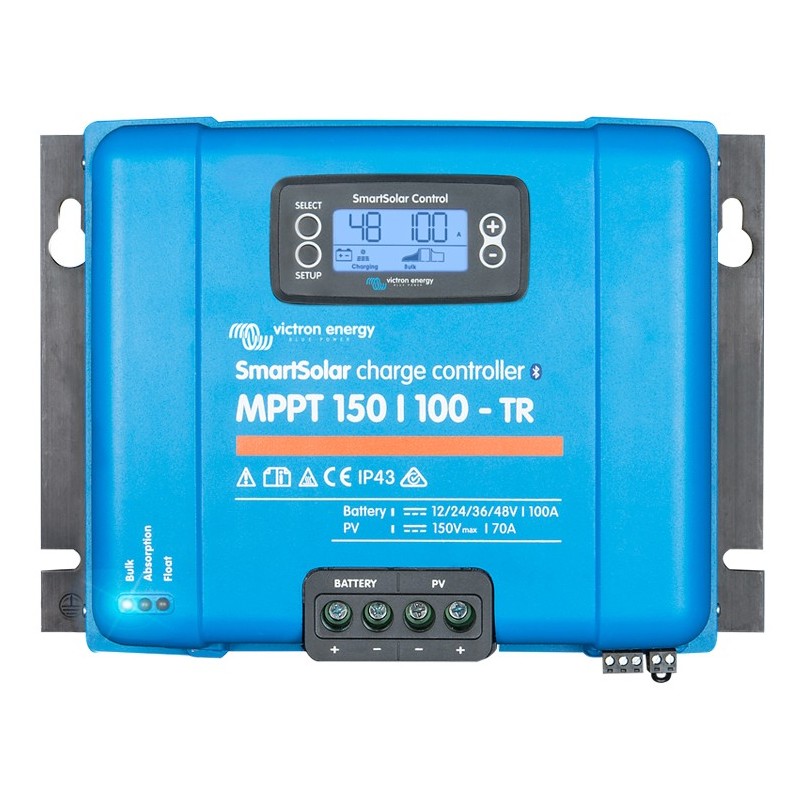

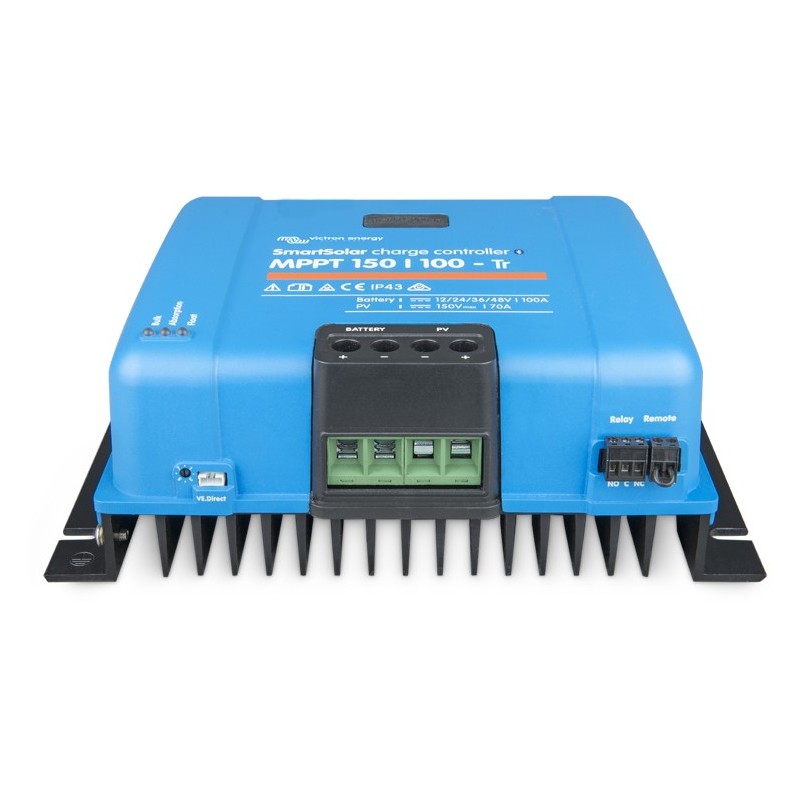

Smartsolar mppt cargador 150v/100a-tr victron

Solar chargers collect energy from your solar panels and store it in your batteries. Using the latest and fastest technology, the SmartSolar MPPT 150/100-MC4 maximizes this energy harvest, intelligently managing it to reach full load in the shortest time possible. The SmartSolar takes care of the health of the battery, extending its useful life.

Dimensions 216x295x103 mm. Weight 4.5 kg.

Battery voltage: Automatic selection: 12/24 V.
Rated load current: 100A.
Nominal PV power, 12V: 1450W.
Nominal PV power, 24V: 2900W.
Nominal PV power, 36V: 4350W.
Nominal PV power, 48V: 5800W.
Max. Short circuit current: 70A.
Maximum PV open circuit voltage: 150 V absolute maximum in the coldest conditions.
Maximum efficiency: 145 V at startup and running at maximum 150 V. 98%. Default values: 14.4 / 28.8 / 43.2 / 57.6 V.
Self-consumption: 12V: 25 mA / 24V: 15 mA.
"Absorption" charging voltage: (Adjustable with: rotary selector, display, VE.Direct or Bluetooth).
"Float" charge voltage: (Adjustable with: rotary selector, display, VE.Direct or Bluetooth).
Loading algorithm: multi-stage variable (eight pre-programmed algorithms) or user-defined algorithm.
Protection: Reverse polarity of the battery (fuse, not accessible by the user). Reverse polarity PV. Output short circuit. Overtemperature
