Phoenix inverter 48v/5000a victron
zoom_out_map
Phoenix inverter 48v/5000a victron

Phoenix inverter 48v/5000a victron

€1,905.75 Tax included

€1,575.00 Tax excluded

notifications_active Last items in stock
100% secure payments

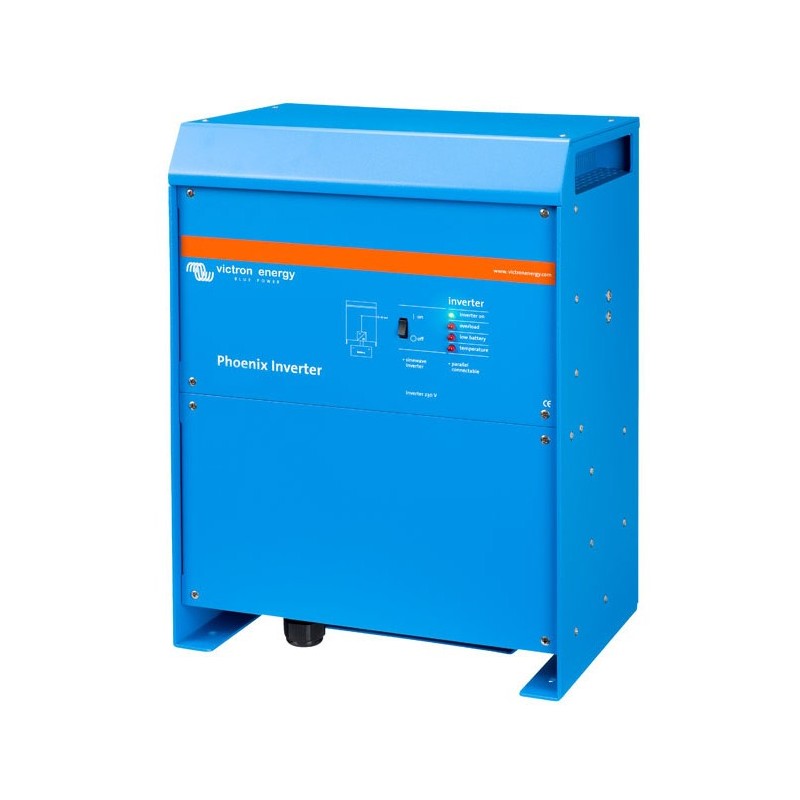

Phoenix 48/5000 inverter with pure sinusoidal output, high power and high efficiency. The combination of high frequency and line frequency technology ensures the best of both worlds. Expandable: up to six Phoenix inverters can be connected in parallel, in single-phase, two-phase or three-phase configuration. New and improved design, very high peak power.

Dimensions 444x328x240. Weight 28 kg.


Parallel and three-phase operation: Yes.
Input voltage range (V DC): 9.5 - 17V 19 - 33V 38 - 66V.
Output: 230V ± 2% / 50 / 60Hz ± 0.1% (1).
Power cont. output 25 ° C (VA) (2): 5000.
Power cont. output 25 ° C (W): 4000.
Power cont. outlet 40 ° C (W): 3700.
Power cont. output 65 ° C (W): 3000.
Peak Power (W): 10000.
Max efficiency 12/14/48 V (%): 94/95.
Consumption without load 12/24/48 V (W): 30/35.
No-load consumption in AES mode (W): 25/30.
Consumption in search mode (W): 10/15.
NT-448
