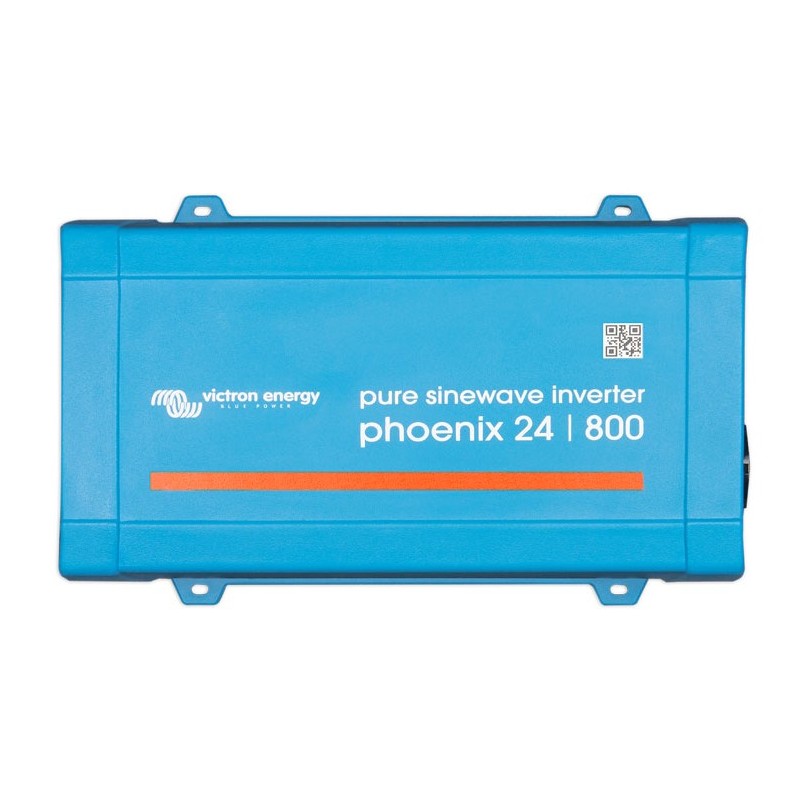

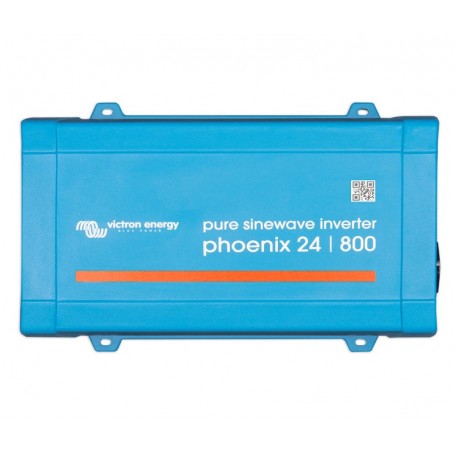

Phoenix inverter 24v/800a ve.direct schuko victron

The inverters allow you to power 230V / 120V AC household equipment with "service" or "automotive" batteries with nominal powers of 12V, 24V or 48V DC.

Dimensions 105x216x305. Weight 5.5 kg.

Power cont at 25 ° C (1): 800VA.
Power cont. at 25 ° C / 40 ° C: 650 / 560W.
Peak power: 1500W.
Output AC voltage / frequency (adjustable): 230VAC or 120VAC +/- 3%. 50Hz or 60Hz +/- 0.1%.
Input voltage range: 9.2 - 17.3 / 18.4 - 34.0 / 36.8 - 68.0V.
Low DC Disconnect (adjustable): 9.3 / 18.6 / 37.2V.
Reset and low DC alarm (adjustable): 10.9 / 21.8 / 43.6V.
Battery charged detector (adjustable): 14.0 / 28.0 / 56.0V.
Max efficiency: 90%.
No-load consumption: 7W.
Default no-load consumption in ECO mode
(Retry interval: 2.5 s, adjustable): 1.5W.
Protection: a.f.
Working temperature range: -40 to + 65 ° C (fan cooled). (1.25% power reduction per ° C
above 25 ° C).
Humidity (non-condensing): max. 95%.
