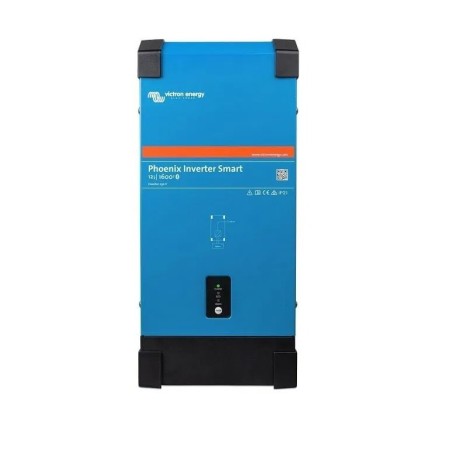

Phoenix c inverter 24V/1600A 230V victron

The Victron Phoenix Smart 24V / 1600 VA is a high-quality inverter designed for off-grid homes, boats, and recreational vehicles. With integrated Bluetooth, you can easily configure and monitor your inverter from a smartphone or tablet, providing stable, efficient, and safe power for all your electrical devices.

Key Features

1600 VA Continuous Power
Delivers up to 1600 W continuous and 3000 W peak power, ideal for starting demanding loads like LED or halogen lights and power tools.

Pure Sine Wave Output
Provides clean and stable AC voltage (210–245 V, 50/60 Hz), perfect for sensitive electronics.

Integrated Bluetooth
Configure and monitor your inverter remotely via the VictronConnect app, tracking voltage, load, and alarms in real time.

Smart ECO Mode
Optimizes energy consumption by putting the inverter in standby when loads are low, automatically activating when demand increases.

Proven Reliability and Protection
Full-bridge topology with toroidal transformer. Protected against short circuits, overloads, and overheating, even in high ambient temperatures.

Remote On/Off Capability
Connect a switch or relay for remote on/off operation, allowing convenient control of the inverter.

VE.Direct Communication Port
Connect the inverter to a computer for advanced configuration and detailed monitoring of all parameters.

Automatic Transfer Switch Compatible
Allows seamless transfer of load to another AC source without interruptions, keeping sensitive electronics running smoothly.

Key Benefits

Provides reliable, stable power for off-grid homes, boats, and RVs.

Handles high-starting loads with ease.

Remote monitoring and control via Bluetooth and VE.Direct.

Protects your devices with pure sine wave output and built-in safety features.

Energy-efficient operation with smart ECO mode.

Technical Specifications

Brand: Victron Energy

Inverter Type: Off-grid / standalone

Continuous Power: 1600 VA / 1600 W

Peak Power: 3000 W

Input Voltage: 24 V

Output Voltage: 230 V ±2%

Frequency: 50 Hz or 60 Hz ±0.1%

Waveform: Pure Sine Wave

Maximum Efficiency: 94%

Connectivity: Bluetooth, VE.Direct

Remote On/Off: Yes

AC/DC Connections: Screw terminals

Battery Connections: M8 bolts

Dimensions: 48.5 x 21.9 x 12.5 cm

Weight: 12 kg

Protection Class: IP21

Warranty: 5 years
