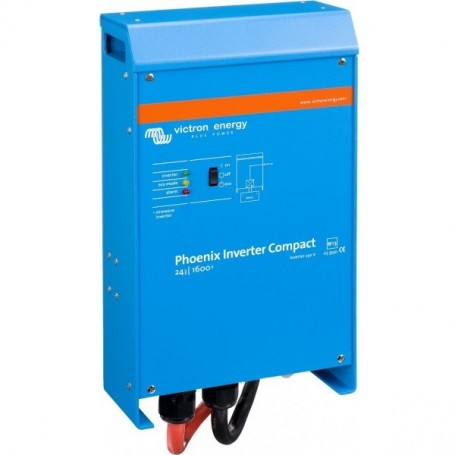

Phoenix c inverter 12v/1600a victron

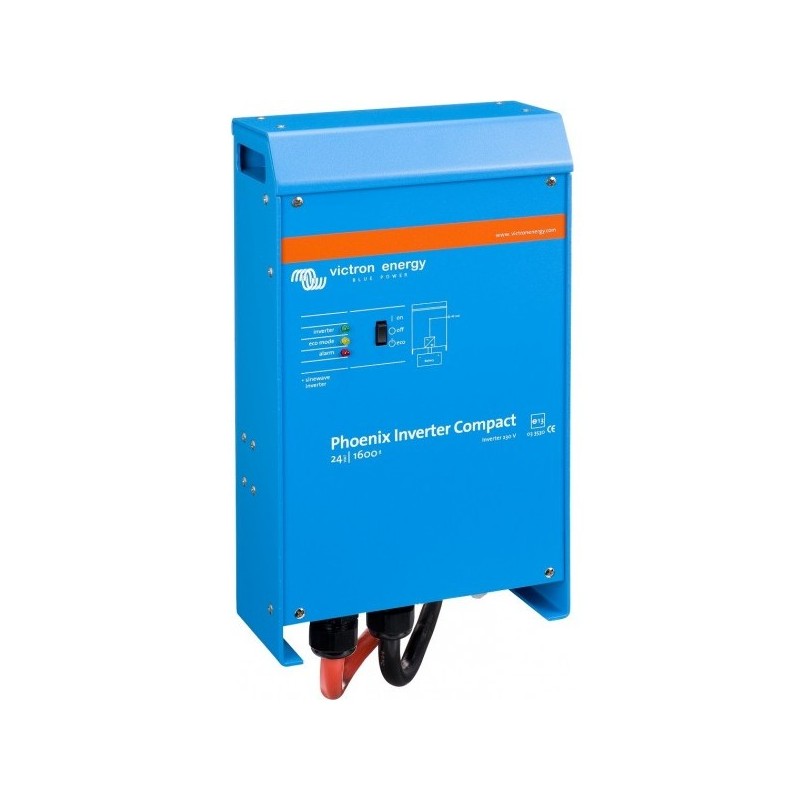

Inverter Victron Energy Phoenix C 12V 1600VA
SinusMax - Superior Design

Developed for professional use, the Phoenix inverter range is ideal for countless applications. The criteria used in its design was to produce a true sine inverter with optimized efficiency but without compromising performance. By using high frequency hybrid technology, we obtain as a result a product of the highest quality, compact in size, light and capable of supplying power, without problems, to any load.

Extra starting power

One of the unique features of SinusMax technology is its very high starting power. Conventional high frequency technology does not offer such extraordinary performance. Phoenix inverters, however, are well suited to power difficult loads such as refrigerators, compressors, electric motors, and the like.

Virtually unlimited power thanks to parallel and three-phase operation.

Up to 6 units of the inverter can operate in parallel to achieve higher power output. Six 24/5000 units, for example, will provide 24 kW / 30 kVA of power output. It is also possible to configure it for three-phase operation.

Transferring the load to another AC source - the automatic transfer switch

If an automatic transfer switch is required, we recommend using the MultiPlus Inverter / Charger instead. The switch is included in this product and the MultiPlus charger function can be disabled. Computers and other electronic equipment will continue to operate without interruption, as the MultiPlus has a very short switching time (less than 20 milliseconds).

Computer interface

All models have an RS-485 port. All you need to connect to your PC is our MK2 interface (see "Accessories" section). This interface takes care of the galvanic isolation between the inverter and the computer, and converts the RS-485 socket into RS-232. An RS-232 to USB conversion cable is also available. Together with our VEConfigure software, which can be downloaded free of charge from our website www.victronenergy.com, all inverter parameters can be customized. This includes output voltage and frequency, overvoltage or undervoltage settings, and relay programming. This relay can, for example, be used to signal several different alarm conditions, or to start a generator.

The inverters can also be connected to VENet, Victron Energy's new power control network, or to other computerized monitoring and control systems.

New applications for high power inverters

The possibilities offered by high-power inverters connected in parallel are truly amazing. For ideas, examples and battery capacity calculations, please refer to our book “Electricity on board”, available free from Victron Energy and downloadable from www.victronenergy.com.
