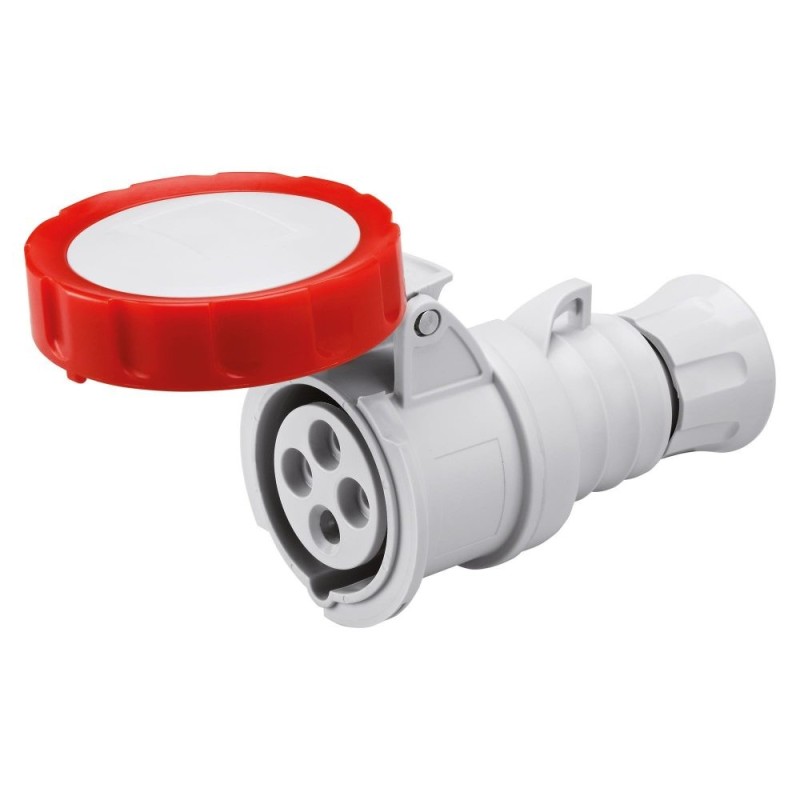

Straight mobile base 3P+T 32a 400V 6h Gewiss IP67

The HP straight mobile base GW62041H from Gewiss is a robust and reliable solution for demanding electrical installations. Designed according to IEC 309 standards, this industrial socket offers excellent protection against water, dust, and impact, making it ideal for outdoor environments, temporary worksites, logistics parks, industrial facilities, and more.

Rated current and configuration: 32 A, 3 poles + earth (3P+T).
Rated voltage: 380–415 V at 50/60 Hz.
Degree of protection: IP66 / IP67 / IP68 / IP69, ensuring dust-tight and watertight performance even under extreme conditions.
Connection type: screw terminals (for flexible cables 2.5–6 mm² / rigid cables 2.5–10 mm²).
Cable gland range: 9.2–19.9 mm.
Operating temperature: from -25 °C to +55 °C.
Halogen-free materials (according to EN 60754-2).
Impact resistance: IK09, providing protection against mechanical shocks.
Glow-wire test and heat resistance: live parts resistant up to 850 °C, non-live parts up to 650 °C; ball pressure test 125 °C (live) / 80 °C (non-live).
Operational cycles: > 2000 switching operations.
Allowable overload: 42 A.
Breaking capacity: 40 A at 1.1 Un.
Insulation resistance: > 10 MO.

Thanks to its IP66 to IP69 protection ratings, this base withstands dust, water jets, temporary immersion, and high-pressure cleaning. It is ideal for outdoor or harsh industrial environments.
With halogen-free, fire-resistant, and mechanically strong materials, this unit ensures safety even under demanding conditions.
The screw terminal connection simplifies on-site installation, replacement, and maintenance in existing systems.

Recommended applications

Temporary worksites and electrical fairs

Outdoor installations (warehouses, logistics parks)

Industries with harsh environments (humid or dusty)

Mobile and temporary installations

Projects requiring compatibility with IEC 309 HP standard
