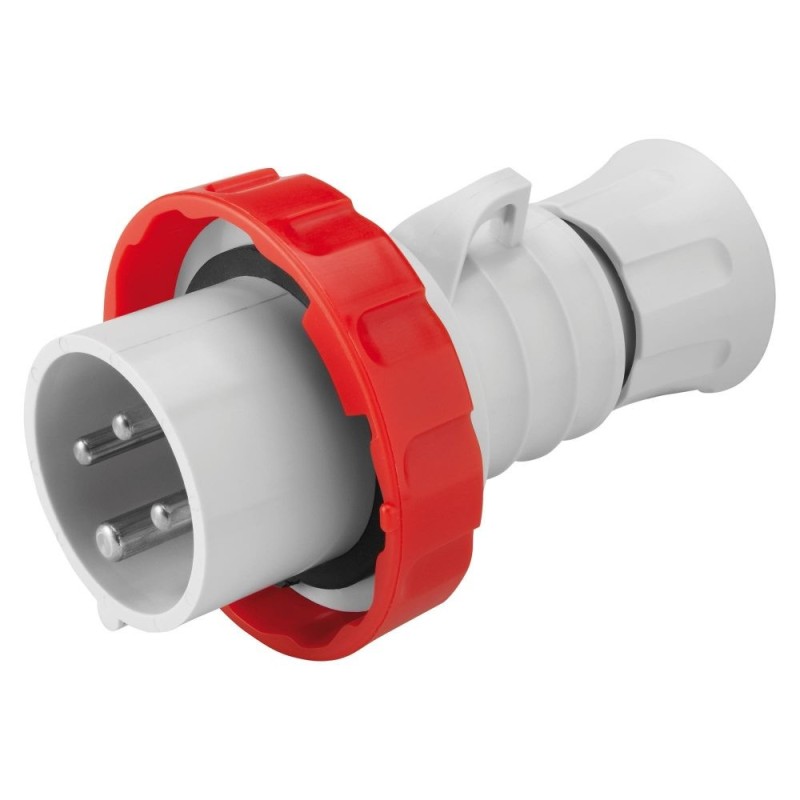

Straight mobile base 3P+T 32a 400V 6h Gewiss IP67

The Gewiss GW60041H Straight Plug HP is a high-performance industrial plug designed for demanding electrical systems. Built to the IEC 309 HP standard, this straight plug offers outstanding durability and protection in harsh environments. With a rated current of 32 A (3P+E) and a rugged structure, it is ideal for outdoor, industrial, and mobile applications.

Rated current and configuration: 32 A, 3 poles + earth (3P+E)
Rated voltage: 380–415 V, 50/60 Hz
Degree of protection: IP66 / IP67 / IP68 / IP69 – completely dustproof and watertight even in extreme conditions
Wiring type: Screw connection (flexible cables 2.5–6 mm² / rigid cables 2.5–10 mm²)
Cable gland range: 9.2–19.9 mm
Operating temperature: –25 °C to +55 °C
Materials: Halogen-free, compliant with EN 60754-2
Impact resistance: IK09, offering excellent protection against mechanical shocks
Glow-wire and heat resistance: Live parts up to 850 °C, non-live parts up to 650 °C; ball pressure test 125 °C (live) / 80 °C (non-live)
Operational cycles: Over 2,000 switching operations
Allowable overload: 42 A
Breaking capacity: 40 A at 1.1 × Un
Insulation resistance: Greater than 10 MO
Provides maximum protection against dust, water jets, and temporary immersion (IP66–IP69).

Ensures safe and reliable operation under extreme conditions, with excellent resistance to heat and impact.

Manufactured with halogen-free, flame-retardant materials for improved safety and environmental performance.

Quick and easy installation thanks to the screw terminal design, ideal for on-site assembly or maintenance.

Fully compatible with the IEC 309 HP system, ensuring seamless integration with other industrial connectors in the same range.
Recommended Applications

Outdoor electrical installations (factories, warehouses, logistics areas)

Industrial facilities exposed to humidity, dust, or mechanical stress

Temporary sites, construction areas, and trade fairs

Mobile or modular installations

Projects requiring compliance with IEC 309 HP standards
