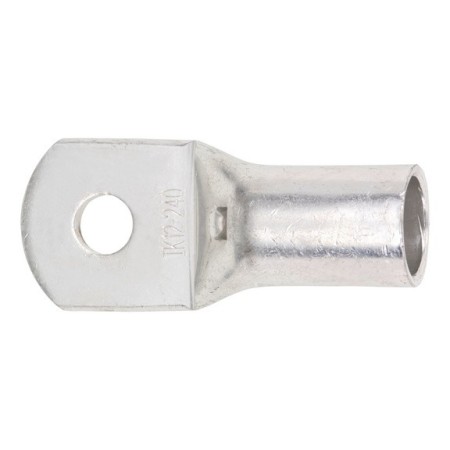

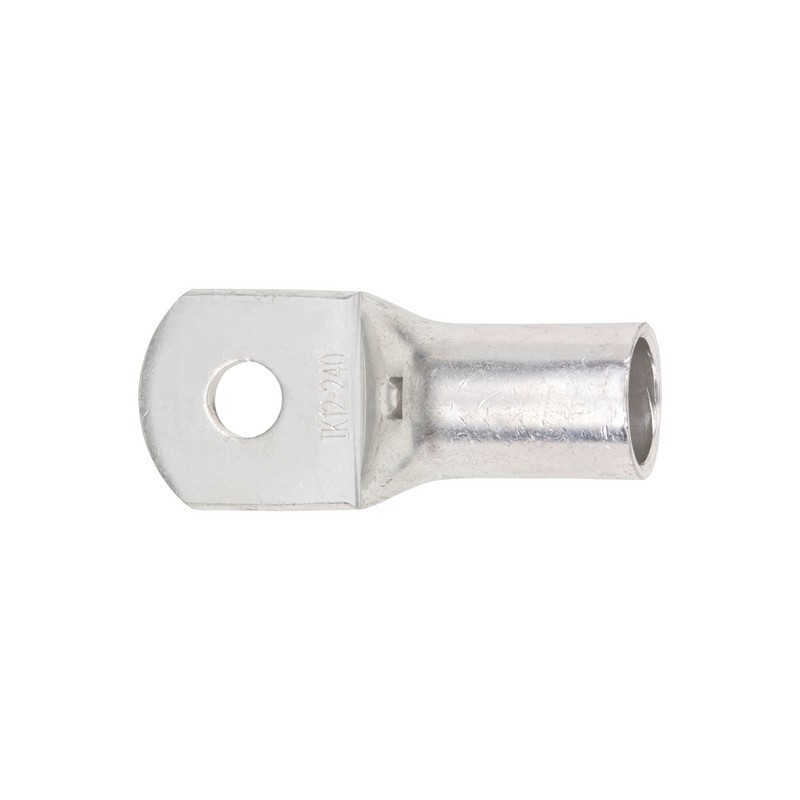

Wurth Pipe Cable Lug With Inspection Hole M12 35mm

The Würth 35 mm² M12 tubular cable lug is designed to provide secure, low-resistance electrical connections in power distribution and electrical installations. Manufactured from electrolytic copper (E-CU), it is suitable for terminating 35 mm² conductors using a crimping tool, ensuring excellent electrical conductivity and high mechanical strength.

The terminal features an inspection hole, allowing the installer to verify that the conductor has been fully inserted before crimping, helping to ensure a reliable and long-lasting connection. It is suitable for Class 2 stranded copper conductors in accordance with DIN EN 60228, as well as compacted round conductors.

Ideal for electrical panels, industrial equipment, power distribution systems, vehicles and marine electrical installations requiring a robust M12 bolted connection.

Key Features:

Electrolytic copper (E-CU) tubular cable lug.
Suitable for 35 mm² cable.
M12 fixing hole.
Inspection hole for easy conductor verification.
Low contact resistance and excellent electrical conductivity.
Maximum operating temperature: 125 °C.
Compatible with standard tubular lug crimping tools.
