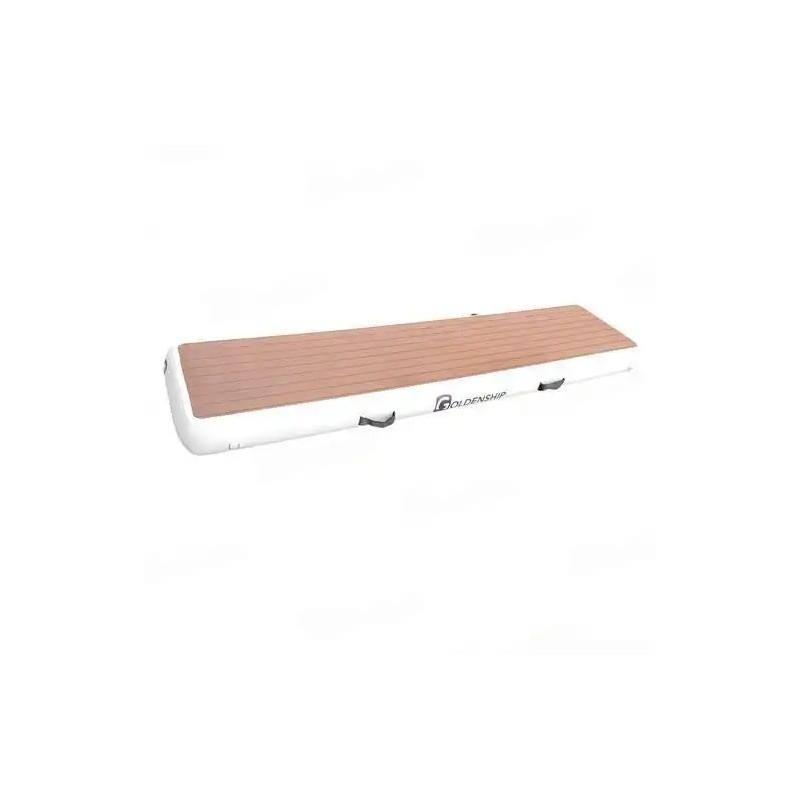

Inflatable Floating Gangway 230cm

The Goldenship Inflatable Floating Gangway 230 is a lightweight and practical boarding solution designed to provide easy access between your boat and the dock. Its inflatable construction makes it particularly convenient for boats where storage space and weight are important considerations.

Manufactured from double-layer PVC with drop-stitch technology, the gangway combines rigidity when inflated with compact dimensions when deflated. The contact areas are reinforced for increased durability, while the structure is heat-bonded under pressure to provide a strong and long-lasting construction.

The upper surface features a 5 mm teak-effect EVA non-slip mat, providing a comfortable walking surface while also giving the gangway an elegant marine appearance.

With an inflated size of 230 × 60 × 17 cm, it provides a generous walkway for boarding and disembarking. When not in use, it can be deflated and packed into the supplied carrying bag for convenient transport and storage on board.

Key Features
Inflatable floating gangway for boats and yachts
Ideal for boarding and disembarking at the dock
230 cm overall length
Double-layer PVC construction
Drop-stitch technology for rigidity when inflated
Reinforced material at contact points
Heat-bonded construction for enhanced durability
5 mm teak-effect EVA non-slip surface
Comfortable and pleasant walking surface
4 large AISI 316 stainless steel D-rings
4 integrated carrying handles
Maximum inflation pressure: 15 PSI
Can be inflated using a manual or electric pump
Compact dimensions when deflated
Easy to carry, handle and stow on board
Supplied with a practical storage/carrying bag
Suitable for small boats, RIBs, motorboats and yachts
Can also be used as a floating platform
Dual Function: Gangway & Floating Platform

One of the main advantages of the Goldenship GS20403 is its versatility.

When positioned between the boat and dock, it functions as a practical inflatable boarding gangway, providing convenient access to and from the vessel.

When placed directly on the water, its buoyant construction allows it to be used as a floating platform, providing additional usable space alongside the boat.

Drop-Stitch Construction

The gangway is manufactured using drop-stitch technology, which uses internal fibres connecting the upper and lower surfaces of the inflatable structure.

When inflated to the recommended pressure, this construction creates a firm and stable platform while retaining the major advantages of an inflatable product: reduced weight, compact storage and easy handling.

The double-layer PVC construction and reinforced contact areas further enhance durability for marine use.

Teak-Effect EVA Non-Slip Surface

The upper side is covered with an elegant 5 mm thick EVA mat with a teak-effect finish.

The EVA surface provides improved grip underfoot while remaining comfortable to walk on. Its teak-style appearance also gives the gangway a premium marine finish that integrates naturally with boat and yacht deck areas.

AISI 316 Stainless Steel D-Rings

The gangway incorporates 4 large D-rings manufactured from AISI 316 stainless steel, a material widely used for marine applications due to its excellent resistance to corrosion.

These attachment points allow the gangway to be conveniently secured when positioned alongside the boat or used between the vessel and dock.

Easy to Transport and Store

Unlike conventional rigid gangways, the inflatable design significantly simplifies handling and onboard storage.

Once deflated, the GS20403 packs down to approximately 68 × 45 × 25 cm, allowing it to be stored in lockers or other limited onboard storage areas.

Four integrated carrying handles make positioning and handling easier when inflated, while the supplied carrying bag provides convenient storage and transportation when not in use.

Technical Specifications
SpecificationDetails
BrandGoldenship
ProductInflatable Floating Gangway 230
Part NumberGS20403
TypeInflatable / Floating Gangway
MaterialDouble-layer PVC
ConstructionDrop-stitch
Upper SurfaceNon-slip EVA
EVA Thickness5 mm
FinishTeak effect
D-Rings4
D-Ring MaterialAISI 316 Stainless Steel
Carrying Handles4
Maximum Inflation Pressure15 PSI
Inflated Dimensions230 × 60 × 17 cm
Deflated Dimensions68 × 45 × 25 cm
Volume235 L
Load Capacity as Gangway150 kg
Load Capacity When Floating200 kg
Weight5.8 kg
Carrying / Storage BagIncluded
Recommended Applications

Ideal for:

Boarding and disembarking from boats
Access between boat and dock
Motorboats
Sailing yachts
RIBs and inflatable boats
Small craft
Tender access
Temporary floating access
Use as an additional floating platform
Boats with limited storage space
