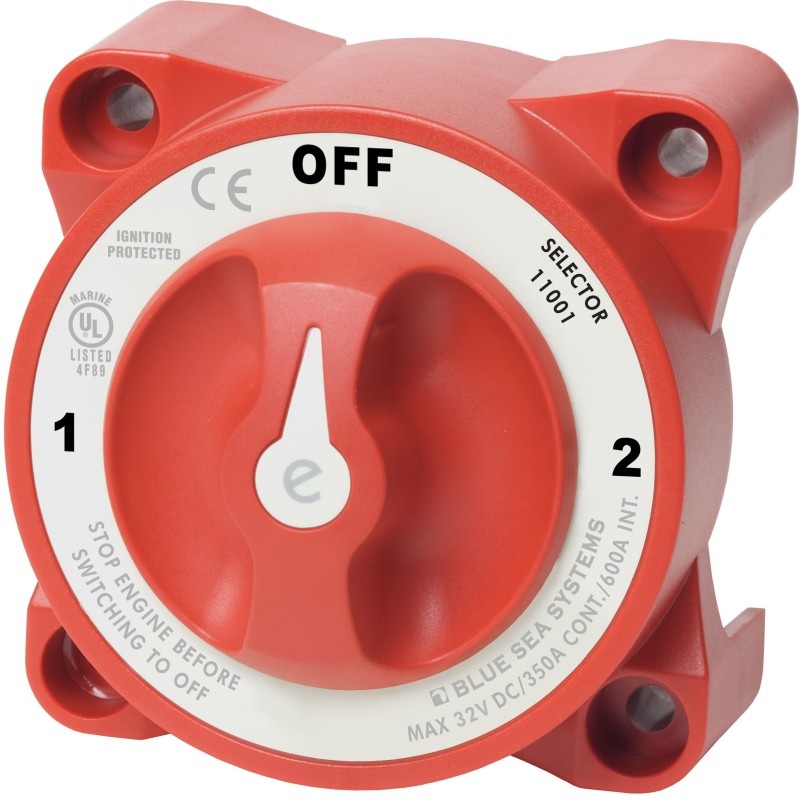

E-Series Selector 3 Position Battery Switch with AFD

The Blue Sea Systems e-Series 11001 selector lets you choose between two battery banks or fully disconnect the system from a single knob. It has no combine ("BOTH") position, which prevents the batteries from being paralleled by mistake.

Its make-before-break contact design allows switching from one bank to the other without interrupting power. The AFD (Alternator Field Disconnect) feature protects the alternator diodes if the switch is turned to OFF while the engine is running. The AFD terminals can also be wired to an LED to indicate switch position.

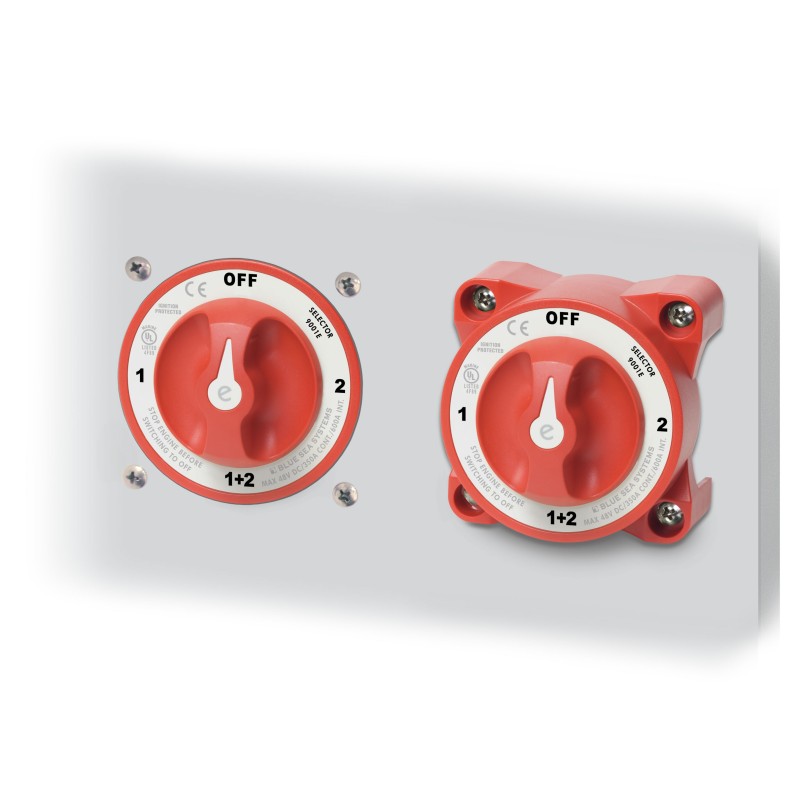

It is ignition protected, making it safe for installation aboard gasoline powered boats as well as inboard diesel engines. The case design allows surface or rear panel mounting. Tin-plated copper studs provide high conductivity and corrosion resistance in the marine environment.

Key features

3-position selector for two battery banks, no combine
Built-in Alternator Field Disconnect (AFD)
Make-before-break contacts: switch banks without power interruption
Ignition protected (SAE J1171, UL 1500, ISO 8846)
IP66 rated
Surface or rear panel mounting
3/8"-16 (M10) tin-plated copper studs, 7/8" long to accept multiple cable terminals
Tactile knob textures for position indication

Technical specifications

SpecificationValue
Part number11001
Switch typeSelector 3 Position
ColorRed
Battery inputs2
Battery combineNo
AFDYes
Maximum voltage32 V DC
Continuous rating325 A
Intermittent rating (5 min)600 A
Starting rating (30 sec)1200 A
Switching rating25 A
Terminal studs3/8"-16 (M10), tinned copper
Terminal stud torque140 in-lb (15.82 Nm)
Cable size to meet ratings4/0 AWG (120 mm²)
Cable clearance (4/0 AWG)1.10 in (27.94 mm)
Mounting holesAccept 1/4" (M6) screw
Weight1.15 lb (0.52 kg)
UPC632085110017

Certifications

CE Marked, ABYC E-11, ISO 8846, SAE J1171, UL 1107, UL 1500, IP66.
