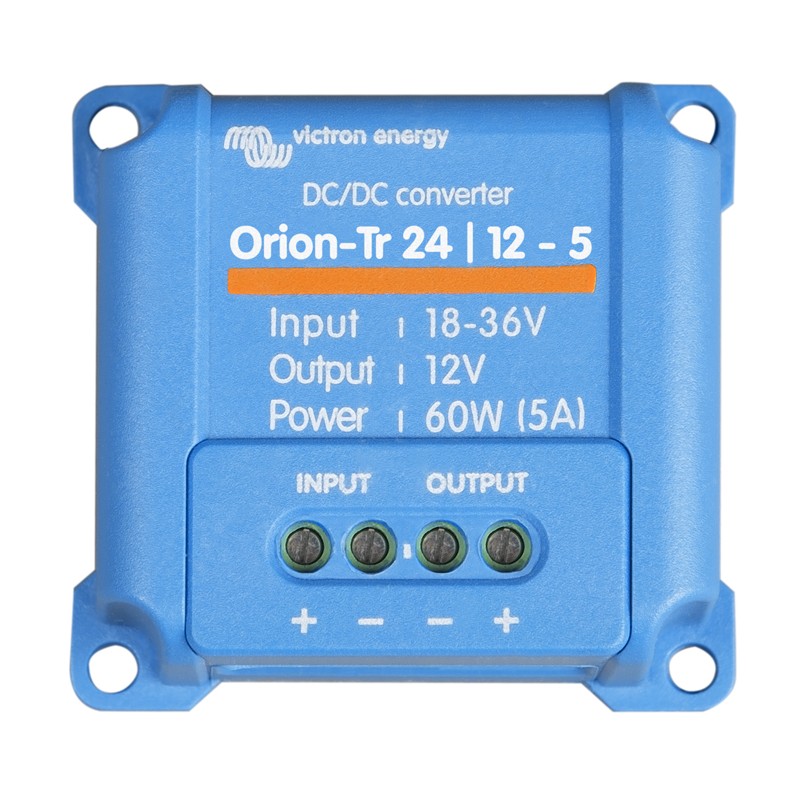

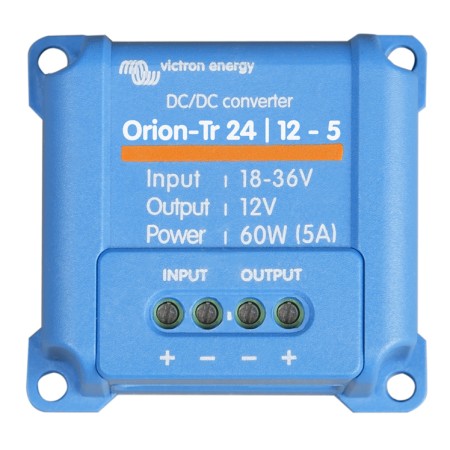

Orion-Tr 24/12-5 (60W) Converter Victron

- High efficiency
Using synchronous rectification, full load efficiency exceeds 95%.

- IP43 protection
When installed with the screw terminals oriented downwards.

- Screw terminals
No special tools needed for installation.

Input voltage range: 18-35V
Output voltage: 12.7V
Efficiency: 95%
Continuous output current: 5A
Max. Output current: 7A
Galvanic isolation: no
Off load current: < 20mA
Operating temperature range (derate 3% per °C above 40°C): -20 to +55°C
DC connection: Screw terminals
Maximum cable cross-section: 3,3 mm² AWG12
Weight kg (lbs): 0,09 (0.20)
Dimensions hxwxd in mm (hxwxd in inches): 53x51x27 (2.1x2x1.1)

Standards:
Safety: EN 60950
Emission: EN 61000-6-3, EN 55014-1
Immunity: EN 61000-6-2, EN 61000-6-1, EN 55014-2
Automotive Directive: ECE R10-4
