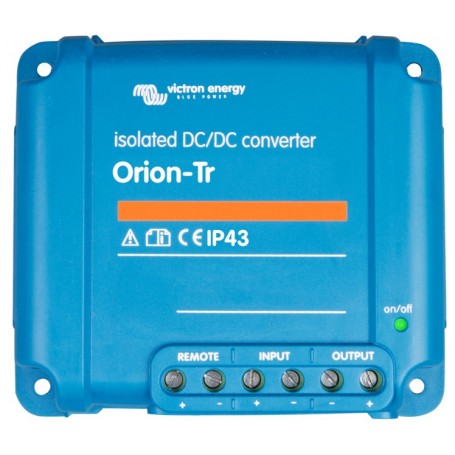

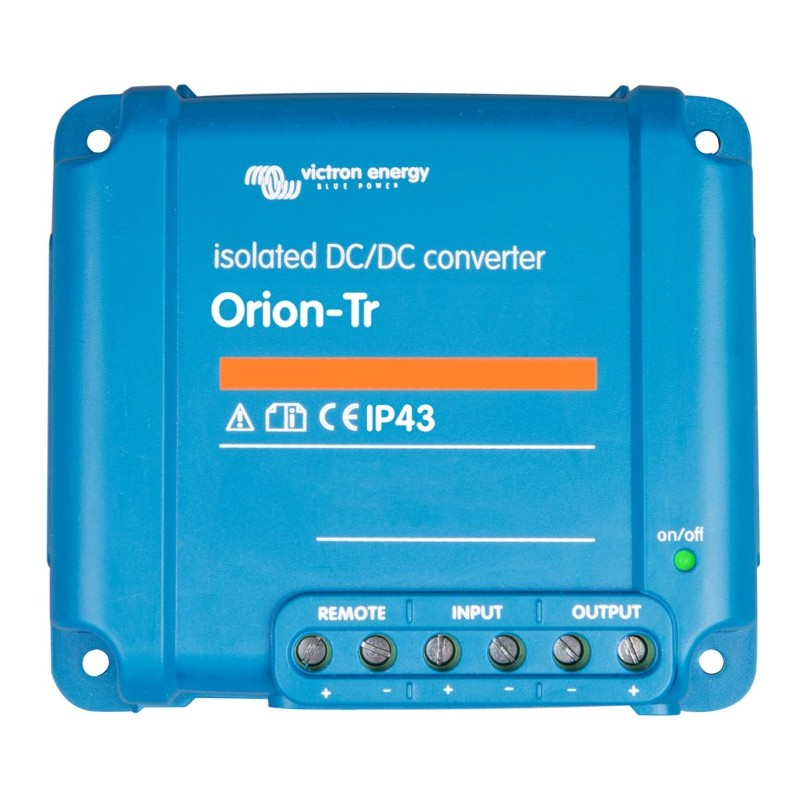

Orion tr converter 48/24v-16a 380w victron

Images shown may not accurately represent Orion-Tr 48 / 24-16A (380W) characteristics.

Dimensions 130x186x70 mm. Weight 1.6 kg.

Input voltage range: 40-70V.
Disconnection undervoltage: 28V.
Undervoltage reset: 30V.
Nominal output voltage: 24.2V.
Output voltage adjustment range: 20-30V.
Output voltage tolerance: +/- 0.2V.
Noise level: 2mV rms.
Output current cont at rated output voltage and 25 ° C: 16A.
Maximum output current at rated output voltage: 25A.
Short circuit current: 40A.
Cont output power at 25 ° C: 430W.
Cont output power at 40 ° C: 380W.
Efficiency: 89%.
Outside load current: <80mA.
Galvanic isolation: 200V between input, output and housing.
Working temperature range: -20 to + 55 ° C (power reduction of 3% for each ° C over 40 ° C).
Humidity: Max. 95% non-condensing.
