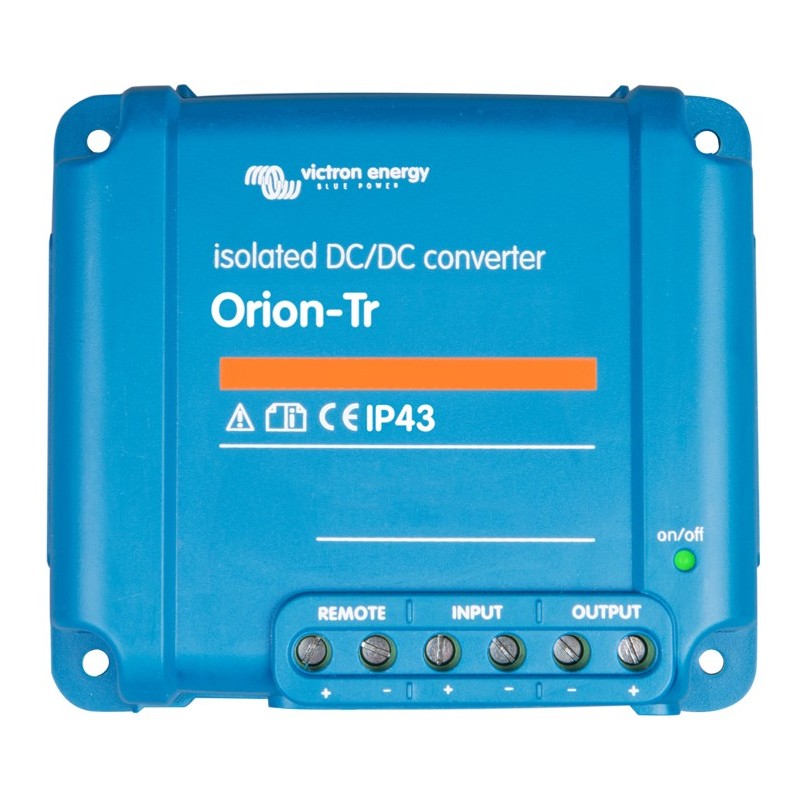

Orion tr converter 24/12v-20a 240w isolated victron
zoom_out_map
Orion tr converter 24/12v-20a 240w isolated victron

Orion tr converter 24/12v-20a 240w isolated victron

€143.99 Tax included

€119.00 Tax excluded

notifications_active Last items in stock
100% secure payments
Images shown may not accurately represent Orion-Tr 24 / 12-20A (240W) characteristics.

Dimensions 130x186x70 mm. Weight 1.3 kg.

Input voltage range: 16-35V.
Disconnection undervoltage: 14V.
Undervoltage reset: 15V.
Nominal output voltage: 12.2V.
Output voltage adjustment range: 10-15V.
Output voltage tolerance: +/- 0.2V.
Noise level: 2mV rms.
Output current cont at rated output voltage and 25 ° C: 20A.
Maximum output current at rated output voltage: 25A.
Short circuit current: 50A.
Cont output power at 25 ° C: 300W.
Cont output power at 40 ° C: 240W.
Efficiency: 88%.
Outside load current: <100mA.
Galvanic isolation: 200V between input, output and housing.
Working temperature range: -20 to + 55 ° C (power reduction of 3% for each ° C over 40 ° C).
Humidity: Max. 95% non-condensing.
