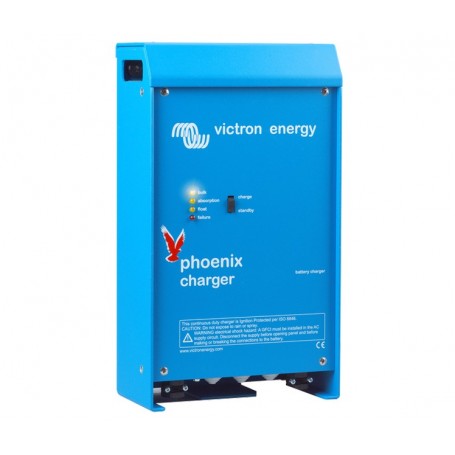

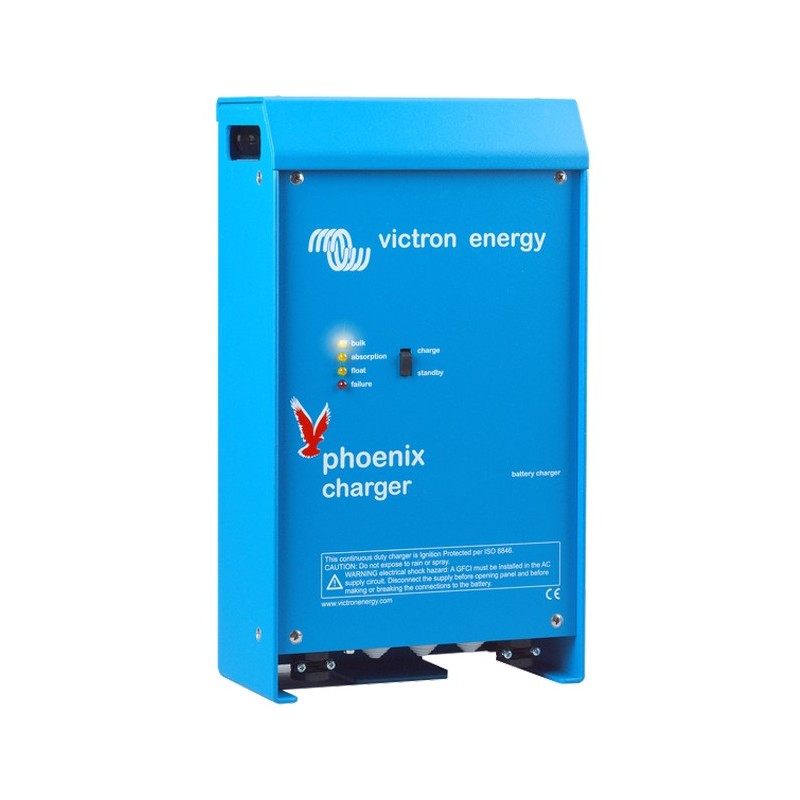

Phoenix charger 12/50 victron (2+1)

Dimensions 350x200x108 mm. Weight 3.8 kg.
The Phoenix charger has a microprocessor controlled “variable” battery management system that can be configured for different battery types. Its “variable” function will automatically optimize the process based on the use that is given to the battery.

Voltage (V / AC): 90 - 265.
Voltage (V / DC): 90 - 400.
Frequency (Hz): 45 - 65.
Power factor: 1.
Absorption charging voltage (V / DC): 14.4.
Float charge voltage (V / DC): 13.8.
'Hold' voltage (V DC): 13.2.
Main outputs current (A): 50.
Auxiliary output current (A): 4.
Charging characteristic: fully configurable self-adapting 4 stages.
Recommended battery capacity (Ah): 200 - 800.
Temperature sensor: Yes.
Voltage sensor: Yes.
Usable as a power supply: Yes.
Protections: -20 to 60 ° C (0-140 ° F).
Operating temperature: max. 95%.
