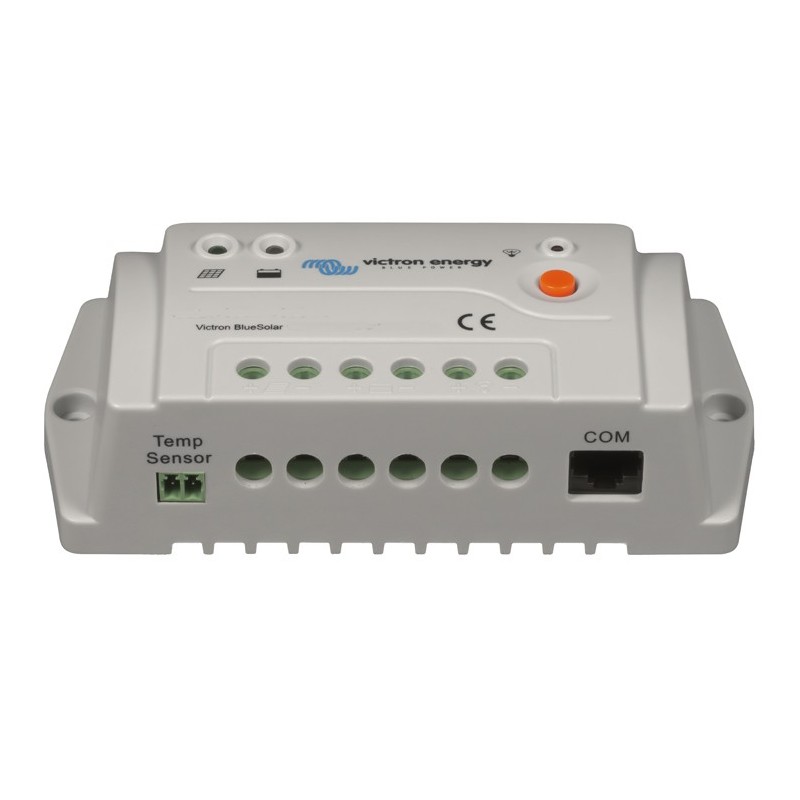

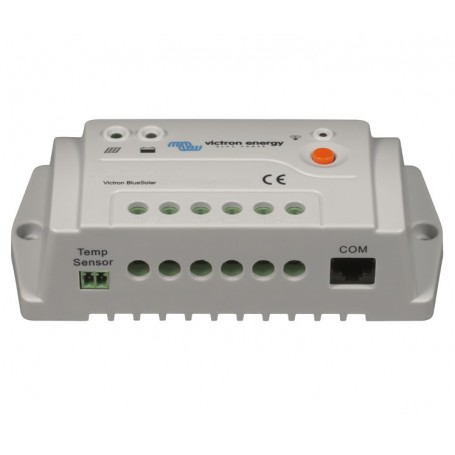

Blue solar mwp charger 12/24v-30a victron

Solar chargers collect energy from your solar panels and store it in your batteries. Using the latest and fastest technology, the BlueSolar maximizes this energy harvest, managing it intelligently to reach the maximum load in the shortest possible time. The BlueSolar takes care of the health of the battery, extending its useful life.


Battery voltage: 12 / 24V with automatic input voltage detection.
Nominal load current: 30 A.
Automatic load disconnection: Yes.
Maximum solar voltage: 28 V / 55 V.
Self-consumption: <10 mA.
Load output: Manual control + low voltage disconnect
Protection: Reverse polarity of the battery (fuse). Output short circuit. Overtemperature
Overload protection: Disconnection after 60 s in case of reaching 130% load. Disconnection after 5 s in case of reaching 160% load. Immediate disconnection in the event of a short circuit.
Grounding: Common positive.
Temp range working temperature: -20 to + 50 ° C (full load).
Humidity (non-condensing): Max. 95%.

BATTERY
"Absorption" charging voltage: 14.2 V / 28.4 V.
"Float" charging voltage: 13.8 V / 27.6 V.
Low voltage load shedding: 11.2 V / 22.4 V.
Low voltage charge reconnection: 12.6V / 25.2V (manual), 13.1V / 26.2V (automatic).
