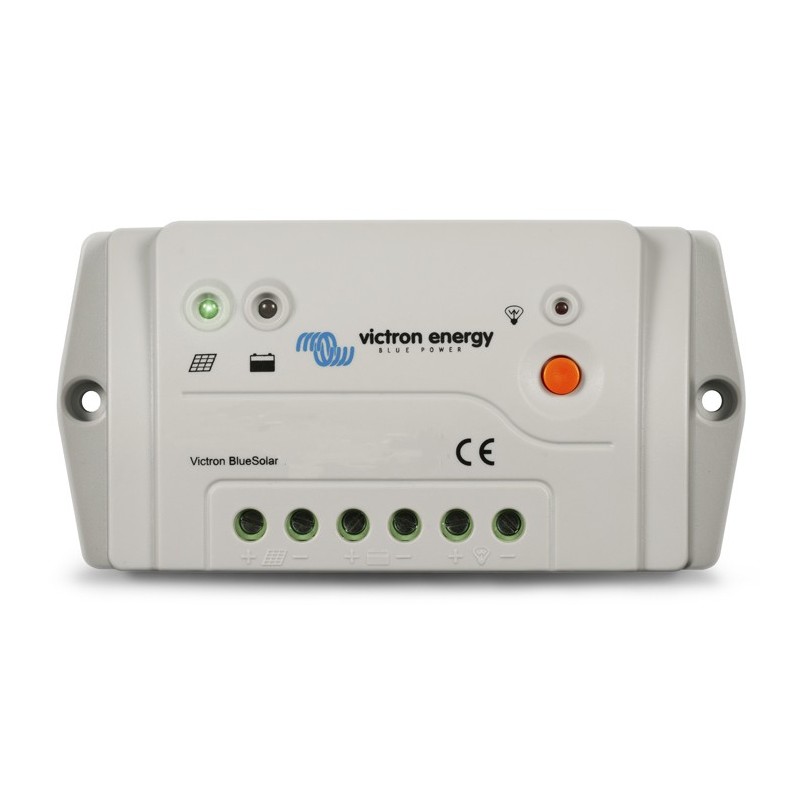

Bluesolar pwm-pro charger 12/24v-5a victron

BlueSolar 12 / 24V-5A charge controller. Dimensions 70x133x34 mm. Weight 0.15 kg. It is also fully programmable:

- Using a computer and a computer program (freely available on our website).
- Through the exclusive BlueSolar-Pro remote panel (see features below).

Battery voltage: 12 / 24V.
Nominal load current: 5 A.
Automatic load disconnection: Yes.
Maximum solar voltage: 28 / 55V.
Self-consumption: <10mA.
Load output: Manual control + low voltage disconnect.

Protection:
-Inversion of battery polarity (fuse).
-Output short circuit.
-Overheating.

Overload protection:
-Disconnection after 60 s in case of reaching 130% load.
-Disconnection: after 5 s in case of reaching 160% load.
-Immediate disconnection in case of short circuit.
Grounding: Common positive.
Temp range working temperature: -20 to + 50 ° C (full load).
Humidity (non-condensing): Max. 95%.
