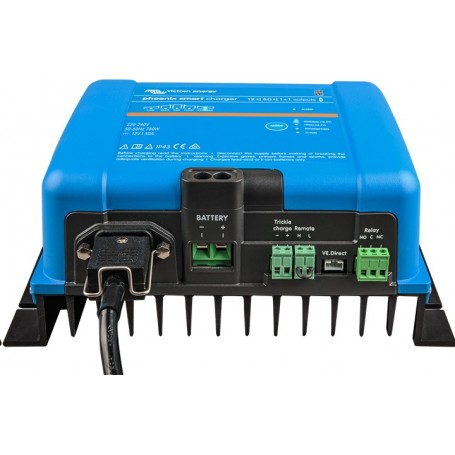

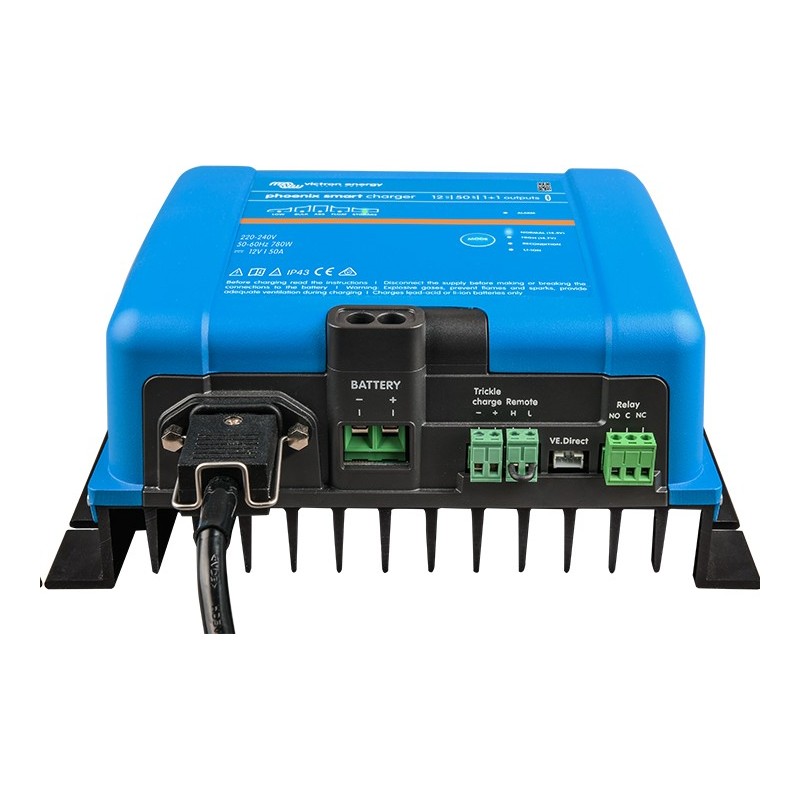

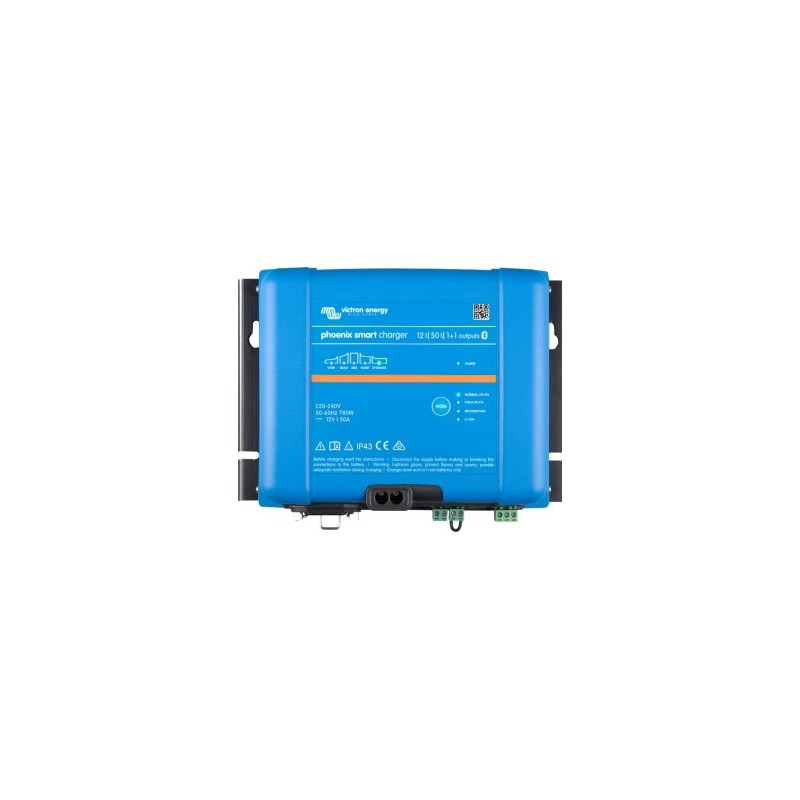

Phoenix smart charger ip43 24v/16a (1+1) victron

The Phoenix Smart 24V 16A IP43 Victron Charger (1 + 1) is an advanced battery charger. With powers between the compact IP65 or IP22 models and the larger Centaur or Skylla, they are perfect for perfectly charging battery banks. This 1 + 1 model incorporates a full power charge output and another 3A for the maintenance of a starter battery.

Input voltage (VAC): 120/230 V.
Input voltage range (VAC): 290 - 355 VDC.
Maximum AC input current: 10 A.
Frequency: 45-65 Hz.
Power factor: 0.7.

'Absorption' charging voltage:
-Normal: 28.8V.
-High (high): 29.4V.
-Li-ion (lithium ion): 28.4V.

'Float' charge voltage:
-Normal: 27.6V.
-High (high): 27.6V.
-Li-ion (lithium ion): 27.0V.

'Storage' charging voltage:
-Normal: 26.4V.
-High (high): 26.4V.
-Li-ion (lithium ion): 27.0V.

Starter battery charging current: 3 A.
Charging algorithm: Adaptive in 5 phases.
Temperature sensor: Yes.
Can be used as a source of
power supply: Yes, the output voltage can be configured with Bluetooth and / or VE.Direct.
Remote On / Off port: Yes (can connect to a Li-ion BMS).
Synchronized parallel operation: Yes, with VE.Can.
Forced cooling: Yes (internal air circulation).
Protection: Battery reverse polarity (fuse, user inaccessible) / Output short circuit / Overheat.
Operating temp range: -20 to 60 ° C (full power up to 40 ° C).
Humidity (non-condensing): max 95%.
