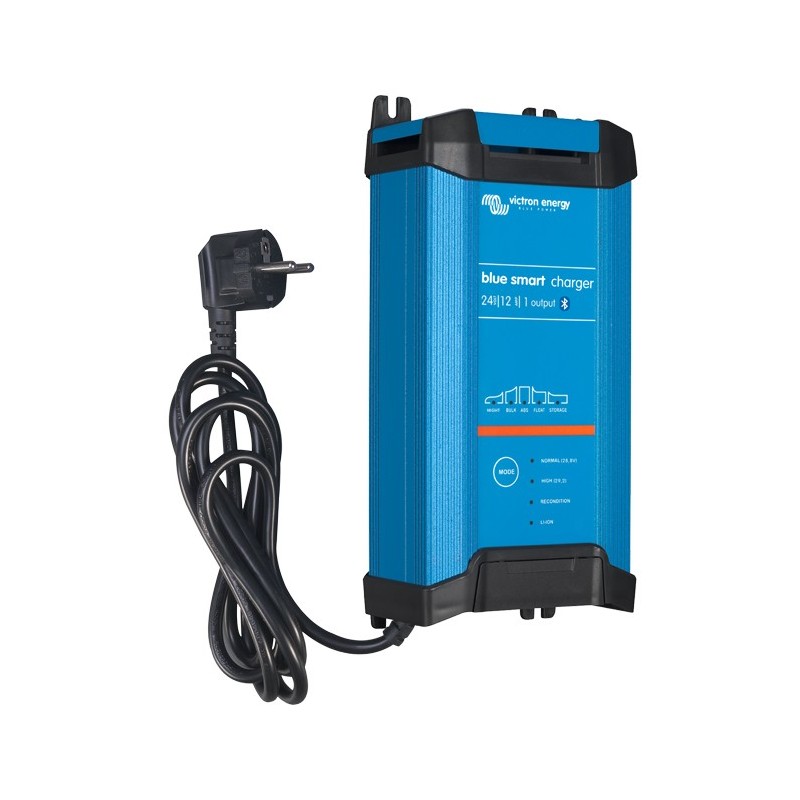

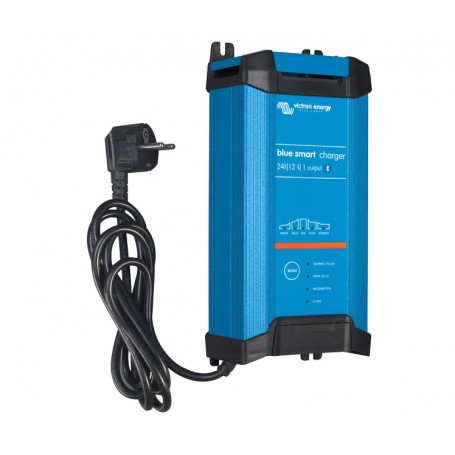

Blue smart charger ip22 24/12 victron (1)

The Blue Smart IP22 24/12 charger with one output is the new professional battery charger with integrated Bluetooth. The Blue Smart IP22 Battery Charger is the wireless solution for monitoring voltage and current, changing settings and updating the charger when new features appear.

Dimensions 235x108x65 mm. Weight 1.4 kg.

Input voltage range: 180 - 265 VAC.
Charging current, normal mode: 8/12 / 16A.
Charging current, NIGHT or LOW mode: LOW 4/6 / 8A.
Efficiency: 93%.
Consumption without load: 0.5 W.
Frequency: 45 - 65 Hz.
Number of outputs: 1.

"Absorption" charging voltage:
-Normal: 28.8V.
-HIGH (high): 29.4V.
-Li-Ion: 28.4V.

"Float" charge voltage:
-Normal: 27.6V.
-HIGH (high): 27.6V.
-Li-Ion: 27.0V.

"Storage" charging voltage:
-Normal: 26.4V.
-HIGH (high): 26.4V.
-Li-ion: 27.0V.

Charging algorithm: 6-stage adaptive.
Can be used as a power supply: Yes.

Protection:
-Inversion of battery polarity (fuse).
-Output short circuit.
-Over temperature.

Temp range operating range: -20 to + 50 ° C.
Humidity (non-condensing): Max 98%.

CASE:
Material and color: Aluminum (blue RAL 5012).
Protection class: IP22.

Dimensions 235x108x65 mm. Weight 1.4 kg.
