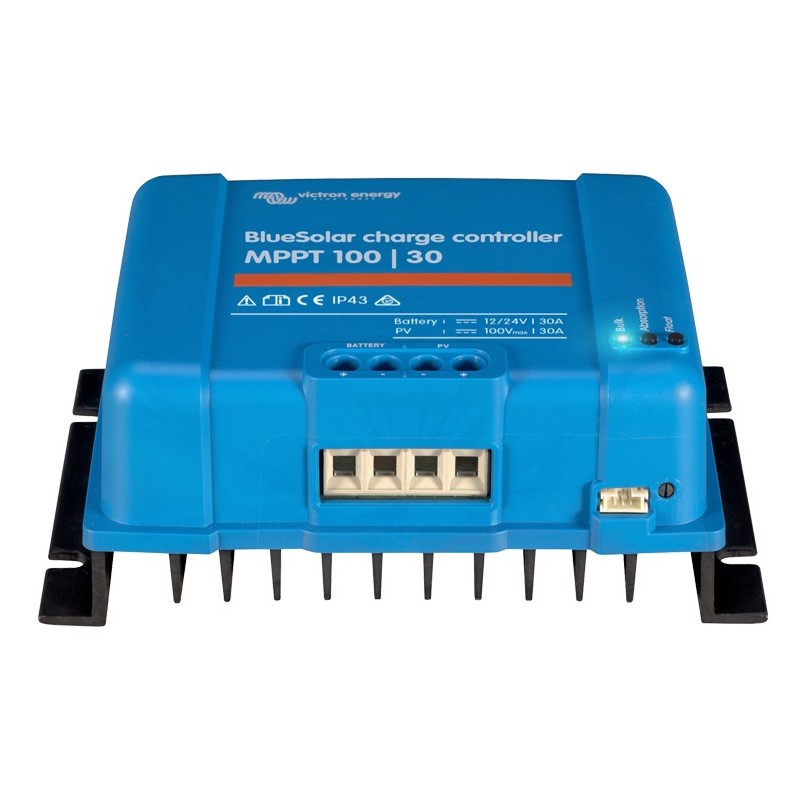

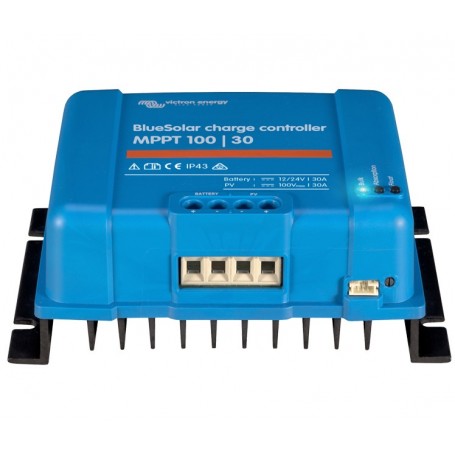

BlueSolar MPPT 100/30 charge controller. Dimensions 130x186x70 mm. Weight 1.3 kg.
Battery voltage: Automatic selection: 12/24 V.
Rated load current: 30A.
Nominal PV power, 12V: 440W.
Nominal PV power, 24V: 880W.
Max. Short circuit current: 35A.
Maximum PV open circuit voltage: 100V.
Maximum efficiency: 98%.
Self-consumption: 12V: 20 mA 24V: 10 mA.
"Absorption" charging voltage: 14.4V / 28.8V (adjustable).
"Float" charging voltage: 13.8V / 27.6V (adjustable).
Charging algorithm: multistage variable.
Temperature compensation: -16 mV / ° C, -32mV / ° C resp.
Protection: Reverse polarity of the battery (fuse). Output short circuit / overheating.
Working temperature: -30 to + 60 ° C (full nominal power up to 40 ° C).
Humidity: 95%, non-condensing.
