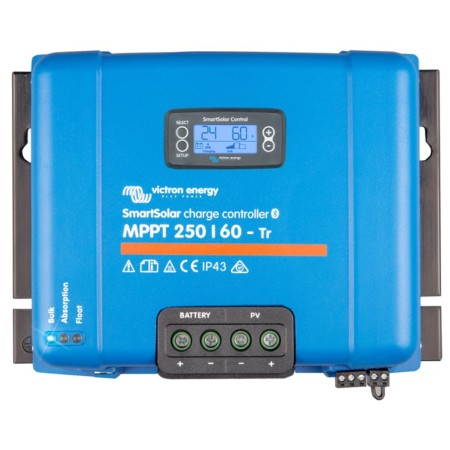

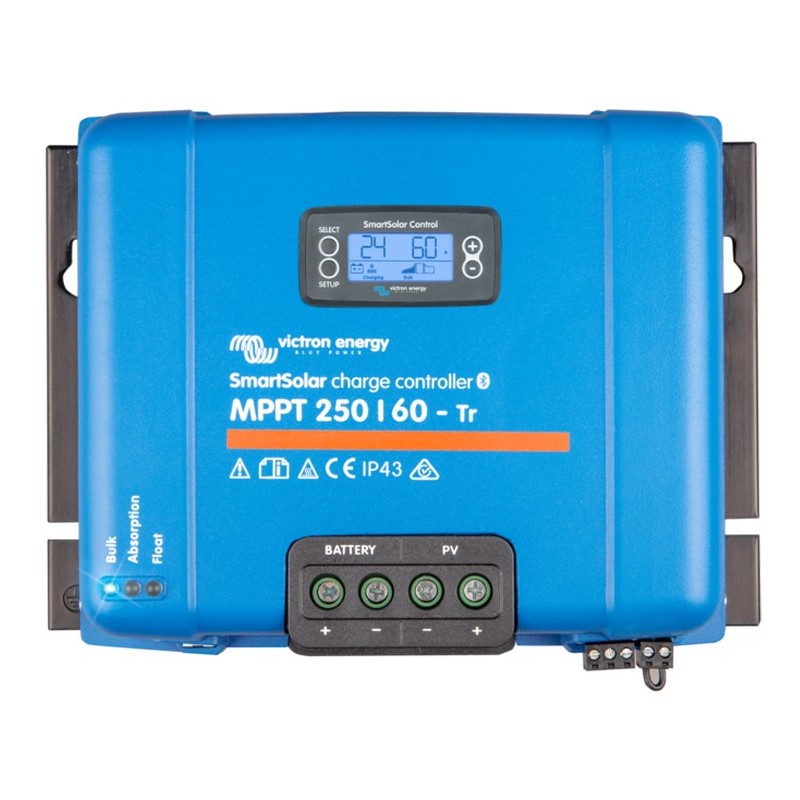

Smartsolar mppt charger 250v/60a-tr victron

Solar chargers collect energy from your solar panels and store it in your batteries. Using the latest and fastest technology, the SmartSolar MPPT 250/60-MC4 maximizes this energy harvest, intelligently managing it to reach maximum load in the shortest possible time. The SmartSolar takes care of the health of the battery, extending its useful life.

Dimensions 200x250x95 mm. Weight 3 kg.

Battery voltage: Automatic selection: 12/24 V.
Rated load current: 60A.
Nominal PV power, 12V: 860W.
Nominal PV power, 24V: 1720W.
Nominal PV power, 48V: 3440W.
Max. Short circuit current: 35A.
Maximum PV open circuit voltage: 250V absolute maximum in the coldest conditions. 245 V at startup and running at maximum.
Maximum efficiency: 99%.
Self-consumption: Less than 35 mA at 12V / 20 mA at 48 V.
"Absorption" charging voltage: Default values: 14.4 / 28.8 / 43.2 / 57.6V. (Adjustable with: rotary selector, display, VE.Direct or Bluetooth).
"Float" charge voltage: Default values: 13.8 / 27.6 / 41.4 / 55.2V. (Adjustable with: rotary selector, display, VE.Direct or Bluetooth).
Loading algorithm: multi-stage variable (eight pre-programmed algorithms) or user-defined algorithm.
