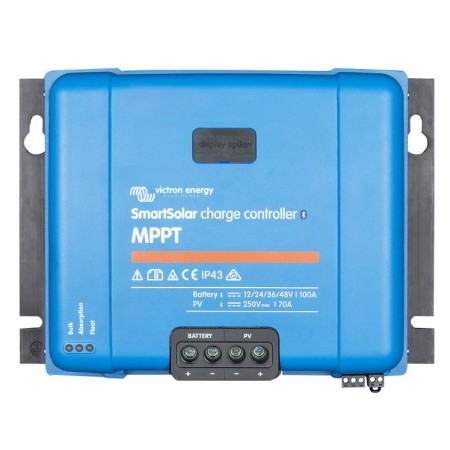

Smarsolar mppt charger 250v/85a-tr victron
100% secure payments
Solar chargers collect energy from your solar panels and store it in your batteries. Using the latest and fastest technology, the SmartSolar MPPT 250/85-Tr maximizes this energy harvest, intelligently managing it to reach full load in the shortest time possible. The SmartSolar takes care of the health of the battery, extending its useful life.
Dimensions 216x295x103 mm. Weight 4.5 kg.
Battery voltage: Automatic selection: 12/24 V.
Rated load current: 85A.
Nominal PV power, 12V: 1200W.
Nominal PV power, 24V: 2400W.
Nominal PV power, 48V: 4900W.
Max. Short circuit current: 70A.
Maximum PV open circuit voltage: 250V absolute maximum in the coldest conditions. 245 V at startup and running at maximum.
Maximum efficiency: 99%.
Self-consumption: Less than 35 mA at 12V / 20 mA at 48 V.
"Absorption" charging voltage: Default values: 14.4 / 28.8 / 43.2 / 57.6V. (Adjustable with: rotary selector, display, VE.Direct or Bluetooth).
"Float" charge voltage: Default values: 13.8 / 27.6 / 41.4 / 55.2V. (Adjustable with: rotary selector, display, VE.Direct or Bluetooth).
Loading algorithm: multi-stage variable (eight pre-programmed algorithms) or user-defined algorithm.
Protection: Reverse polarity of the battery (fuse, not accessible by the user). Reverse polarity PV. Output short circuit. Overtemperature
Working temperature: -30 to + 60 ° C (full nominal power up to 40 ° C).
Humidity: 95%, non-condensing.
Maximum working height: 5,000 m (full nominal power up to 2,000 m).
Environmental conditions: Indoor, not conditioned.
Pollution degree: PD3.
Data communication port: VE.Direct or Bluetooth.
Remote on / off switch: Yes (two-phase connector).
Programmable Relay: DPST Nominal Capacity AC 240 V AC /
4 A DC rating 4A up to 35VDC, 1A up to 60VDC
Parallel operation: Yes (not synchronized).
