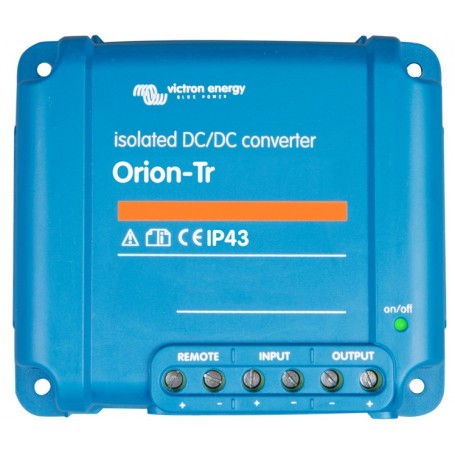

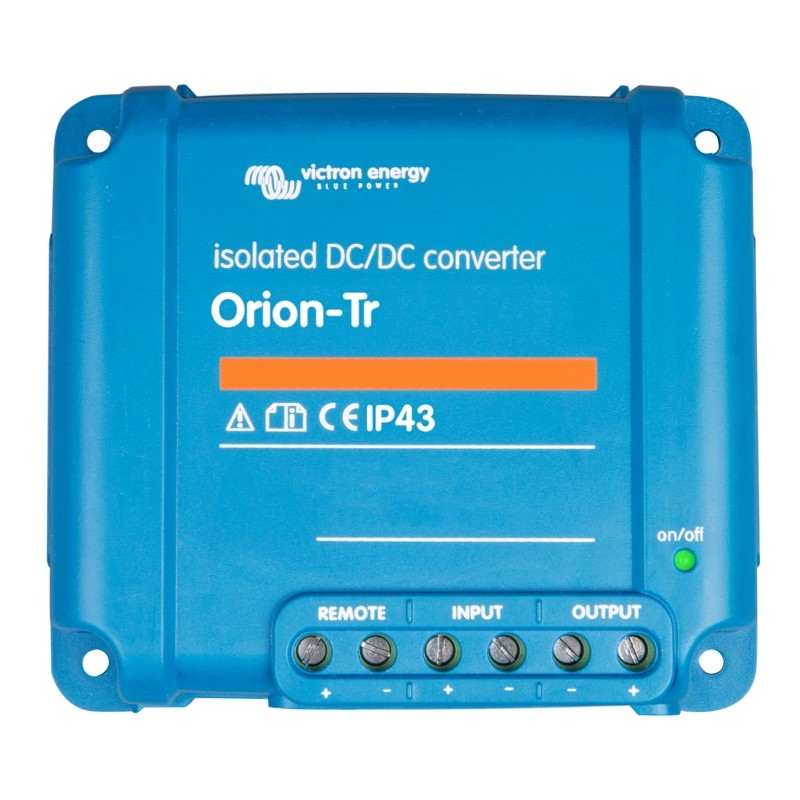

Orion converter dc-dc 24/48v-2.5a victron

Images shown may not accurately represent Orion-Tr 24 / 48-2.5A (120W) characteristics.

Dimensions 100x113x47 mm. Weight 0.6 kg.

Input voltage range: 16-35 VDC.
Disconnection undervoltage: 14V.
Reset undervoltage: 15V.
Output voltage adjustment range: 40-60V.
Output voltage tolerance: +/- 0.2V.
Noise level: 2mV rms.
Output current cont at rated output voltage and 25 ° C: 2.5A.
Maximum output current at rated output voltage: 3.0A.
Short circuit current: 19A.
Cont output power at 25 ° C: 120W.
Cont output power at 40 ° C: 115W.
Efficiency: 88%.
Outside load current: <120mA.
Galvanic isolation: 200V between input, output and housing.
Working temperature range: -20 to + 55 ° C (power reduction of 3% for each ° C over 40 ° C).
Humidity: Max. 95% non-condensing.
