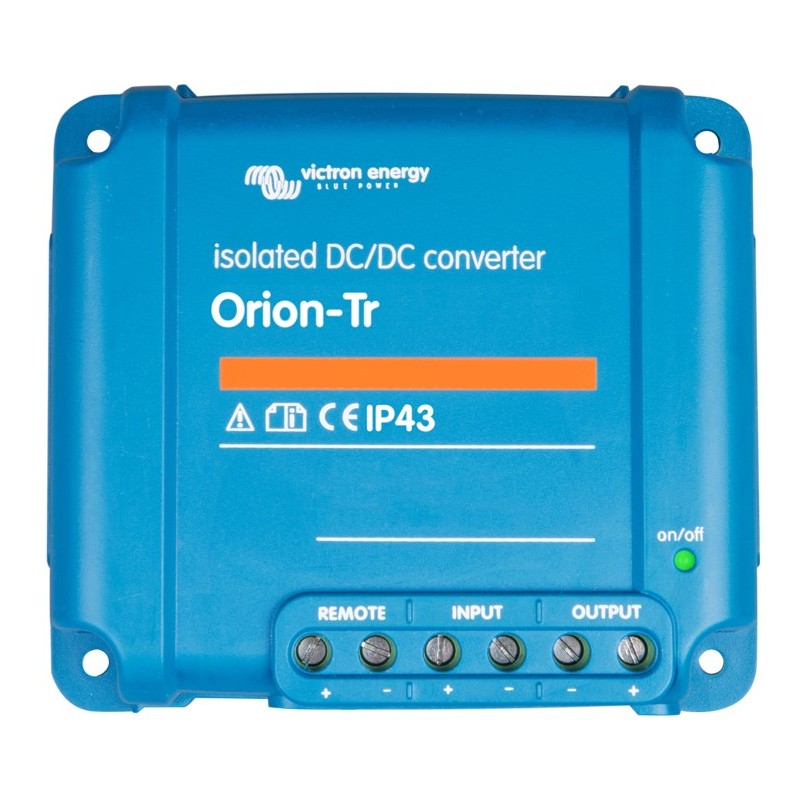

Orion converter dc-dc 12/24v-10a 240w aislado victron

Images shown may not accurately represent Orion-Tr 12 / 24-10 (240W) characteristics.


Input voltage range: 8-17V.
Disconnection undervoltage: 7V.
Undervoltage reset: 7.5V.
Nominal output voltage: 24.2V.
Output voltage adjustment range: 20-30V.
Output voltage tolerance: +/- 0.2V.
Noise level: 2mV rms.
Output current cont at rated output voltage and 25 ° C: 10A.
Maximum output current at rated output voltage: 15A.
Short circuit current: 25A.
Cont output power at 25 ° C: 280W.
Cont output power at 40 ° C: 240W.
Efficiency: 88%.
Outside load current: <100mA.
Galvanic isolation: 200V between input, output and housing.
Working temperature range: -20 to + 55 ° C (power reduction of 3% for each ° C over 40 ° C).
Humidity: Max. 95% non-condensing.
