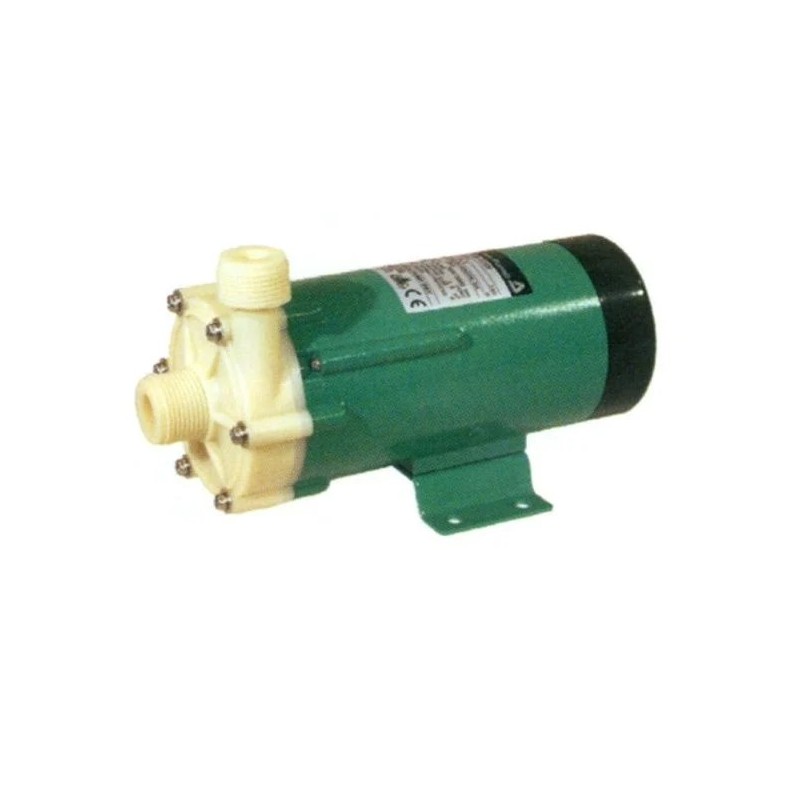

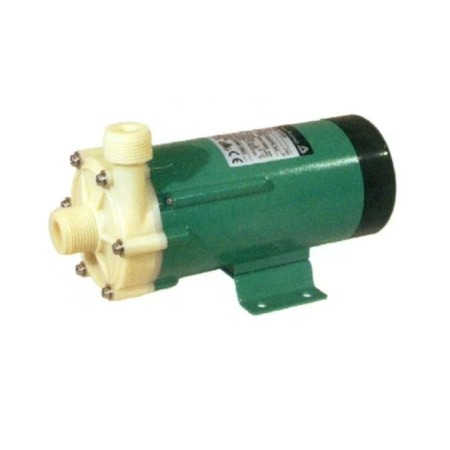

Webasto WB250 Magnetic Drive Pump 230 V

The Webasto WB250 is a magnetic drive circulation pump designed for Webasto marine air conditioning and heating systems. It ensures a continuous and efficient flow of water or coolant throughout the circuit, optimising system performance and providing consistent temperature distribution.

Featuring magnetic drive technology, the WB250 eliminates the need for a mechanical shaft seal between the motor and the impeller, significantly reducing the risk of leaks and component wear. This design provides quiet operation, exceptional reliability and minimal maintenance, making it ideal for demanding marine applications.

Powered by 230 V AC and compatible with both 50 Hz and 60 Hz electrical systems, the WB250 delivers a maximum flow rate of 16 l/min (4.2 GPM) while consuming just 26 W of power. With a nominal current draw of 0.18 A at 230 V, it offers an energy-efficient solution for circulating seawater or coolant in marine HVAC systems.

The pump features Ø14 mm inlet and outlet hose connections, ensuring easy integration into compatible Webasto installations. Measuring 180 × 95 × 109 mm and weighing only 1.6 kg, it is compact enough for installation in confined engine rooms and technical compartments. Its robust construction and corrosion-resistant design ensure long-lasting performance in harsh marine environments.

Key Features
Magnetic drive circulation pump.
Designed for Webasto marine air conditioning and heating systems.
Power supply: 230 V AC.
Compatible with 50/60 Hz electrical systems.
Maximum flow rate: 16 l/min (4.2 GPM).
Power consumption: 26 W.
Current draw: 0.18 A (230 V).
Ø14 mm inlet and outlet hose connections.
Dimensions: 180 × 95 × 109 mm.
Weight: 1.6 kg.
Magnetic drive technology eliminates the need for a mechanical seal.
Quiet, reliable and low-maintenance operation.
Reduced risk of leaks and extended service life.
Durable, corrosion-resistant construction for marine applications.
Webasto Part Number: WBCL001104A (230 V version).
