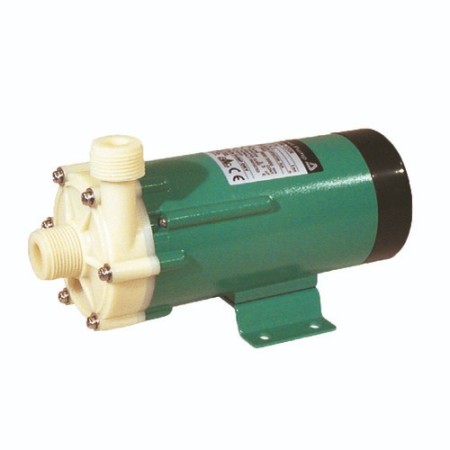

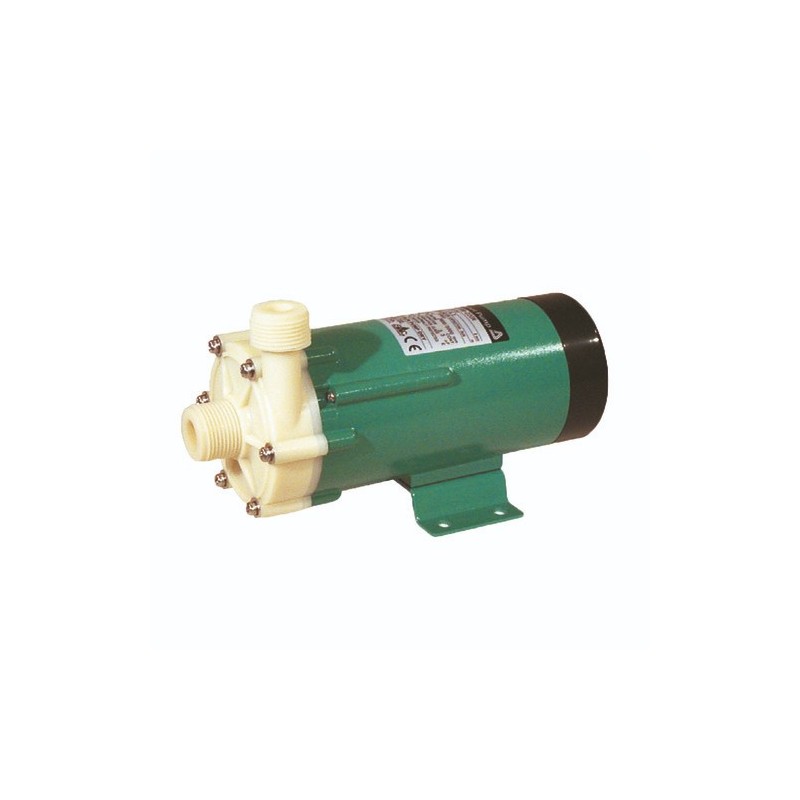

Webasto WB1000 Magnetic Drive Pump 230 V

The Webasto WB1000 is a magnetic drive circulation pump designed for Webasto marine air conditioning and HVAC systems. It provides a continuous and efficient flow of seawater or coolant throughout the system, ensuring optimum cooling performance and reliable temperature control on board.

Featuring magnetic drive technology, the WB1000 eliminates the need for a mechanical shaft seal between the motor and impeller, significantly reducing the risk of leaks and component wear. This advanced design ensures quiet operation, outstanding reliability and minimal maintenance, making it an ideal choice for demanding marine environments.

Powered by 230 V AC and compatible with both 50 Hz and 60 Hz electrical systems, the WB1000 delivers a maximum flow rate of 45 l/min (11.8 GPM) while consuming 90 W of power. With a nominal current draw of 0.52 A at 230 V, it provides efficient circulation with low energy consumption, making it suitable for a wide range of marine cooling and heating applications.

The pump is equipped with G 3/4" male threaded inlet and outlet connections, allowing for secure and straightforward installation. Measuring 250 × 120 × 130 mm and weighing 3.9 kg, it combines a compact footprint with a robust, corrosion-resistant construction designed for long-lasting performance in harsh marine environments. The WB1000 is compatible with Webasto BlueCool systems and is supplied under Webasto part number WBCL001106A, replacing the previous WBCL001106 model.

Key Features
Magnetic drive circulation pump.
Designed for Webasto marine air conditioning and HVAC systems.
Power supply: 230 V AC.
Compatible with 50/60 Hz electrical systems.
Maximum flow rate: 45 l/min (11.8 GPM).
Power consumption: 90 W.
Current draw: 0.52 A (230 V).
G 3/4" male threaded inlet and outlet connections.
Dimensions: 250 × 120 × 130 mm.
Weight: 3.9 kg.
Magnetic drive technology eliminates the need for a mechanical shaft seal.
Quiet, reliable and low-maintenance operation.
Reduced risk of leaks and extended service life.
Durable, corrosion-resistant construction for marine applications.
Webasto Part Number: WBCL001106A (230 V version).
Replaces previous part number WBCL001106.
