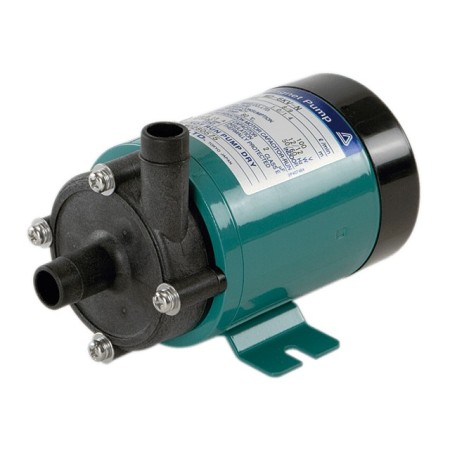

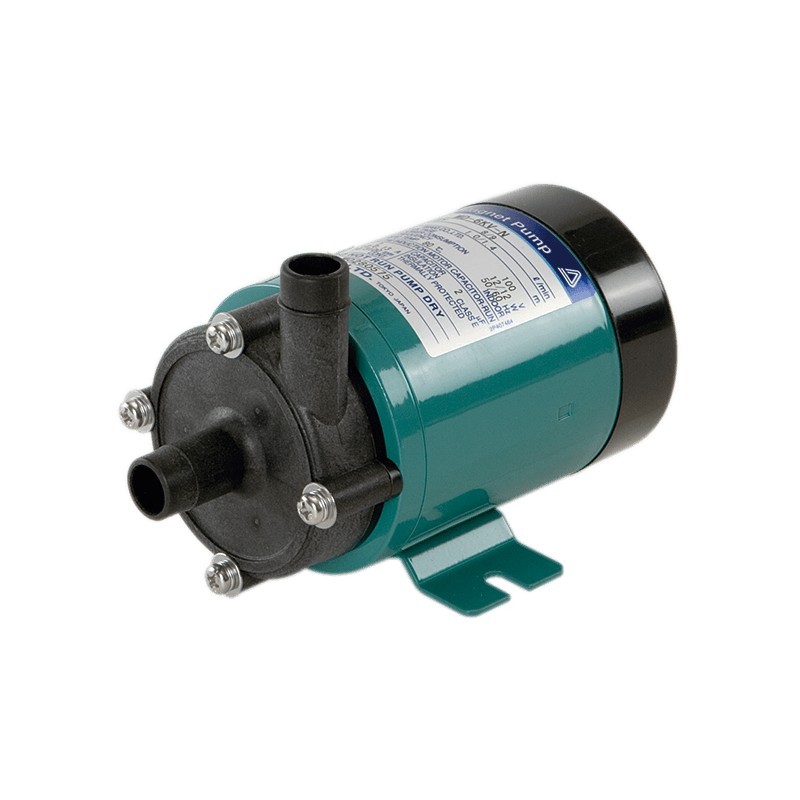

Webasto WB500 Magnetic Drive Pump 230 V
Free in-store pickup
International shipping
100% secure payment
14-day easy returns
The Webasto WB500 is a magnetic drive circulation pump specifically designed for Webasto marine air conditioning and HVAC systems. It ensures a continuous and efficient flow of seawater or coolant throughout the system, optimising cooling performance and providing reliable temperature regulation on board.
Featuring magnetic drive technology, the WB500 eliminates the need for a mechanical shaft seal between the motor and impeller, significantly reducing the risk of leaks and component wear. This advanced design provides quiet operation, outstanding reliability and minimal maintenance, making it an ideal solution for demanding marine environments.
Powered by 230 V AC and compatible with both 50 Hz and 60 Hz electrical systems, the WB500 delivers a maximum flow rate of 32 l/min (8.4 GPM) while consuming 60 W of power. With a nominal current draw of 0.4 A at 230 V, it provides efficient and dependable circulation for marine air conditioning and cooling systems.
The pump is equipped with G 3/4" male threaded inlet and outlet connections, ensuring secure and straightforward installation. Measuring 248 × 120 × 130 mm and weighing 3.5 kg, it combines compact dimensions with a robust, corrosion-resistant construction designed to withstand harsh marine conditions. Compatible with a wide range of Webasto BlueCool systems, the WB500 offers long-lasting performance and dependable operation.
Key Features
Magnetic drive circulation pump.
Designed for Webasto marine air conditioning and HVAC systems.
Power supply: 230 V AC.
Compatible with 50/60 Hz electrical systems.
Maximum flow rate: 32 l/min (8.4 GPM).
Power consumption: 60 W.
Current draw: 0.4 A (230 V).
G 3/4" male threaded inlet and outlet connections.
Dimensions: 248 × 120 × 130 mm.
Weight: 3.5 kg.
Magnetic drive technology eliminates the need for a mechanical seal.
Quiet, reliable and low-maintenance operation.
Reduced risk of leaks and extended service life.
Durable, corrosion-resistant construction for marine applications.
Webasto Part Number: WBCL001101A (230 V version).
Featuring magnetic drive technology, the WB500 eliminates the need for a mechanical shaft seal between the motor and impeller, significantly reducing the risk of leaks and component wear. This advanced design provides quiet operation, outstanding reliability and minimal maintenance, making it an ideal solution for demanding marine environments.
Powered by 230 V AC and compatible with both 50 Hz and 60 Hz electrical systems, the WB500 delivers a maximum flow rate of 32 l/min (8.4 GPM) while consuming 60 W of power. With a nominal current draw of 0.4 A at 230 V, it provides efficient and dependable circulation for marine air conditioning and cooling systems.
The pump is equipped with G 3/4" male threaded inlet and outlet connections, ensuring secure and straightforward installation. Measuring 248 × 120 × 130 mm and weighing 3.5 kg, it combines compact dimensions with a robust, corrosion-resistant construction designed to withstand harsh marine conditions. Compatible with a wide range of Webasto BlueCool systems, the WB500 offers long-lasting performance and dependable operation.
Key Features
Magnetic drive circulation pump.
Designed for Webasto marine air conditioning and HVAC systems.
Power supply: 230 V AC.
Compatible with 50/60 Hz electrical systems.
Maximum flow rate: 32 l/min (8.4 GPM).
Power consumption: 60 W.
Current draw: 0.4 A (230 V).
G 3/4" male threaded inlet and outlet connections.
Dimensions: 248 × 120 × 130 mm.
Weight: 3.5 kg.
Magnetic drive technology eliminates the need for a mechanical seal.
Quiet, reliable and low-maintenance operation.
Reduced risk of leaks and extended service life.
Durable, corrosion-resistant construction for marine applications.
Webasto Part Number: WBCL001101A (230 V version).
