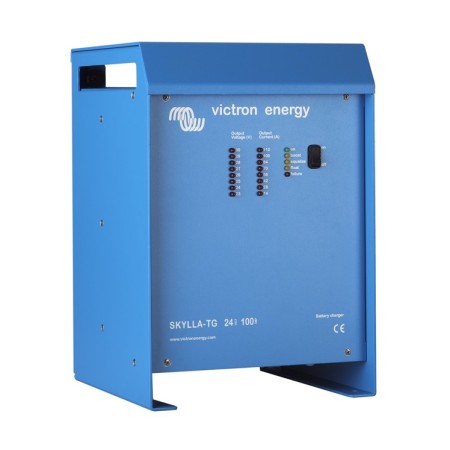

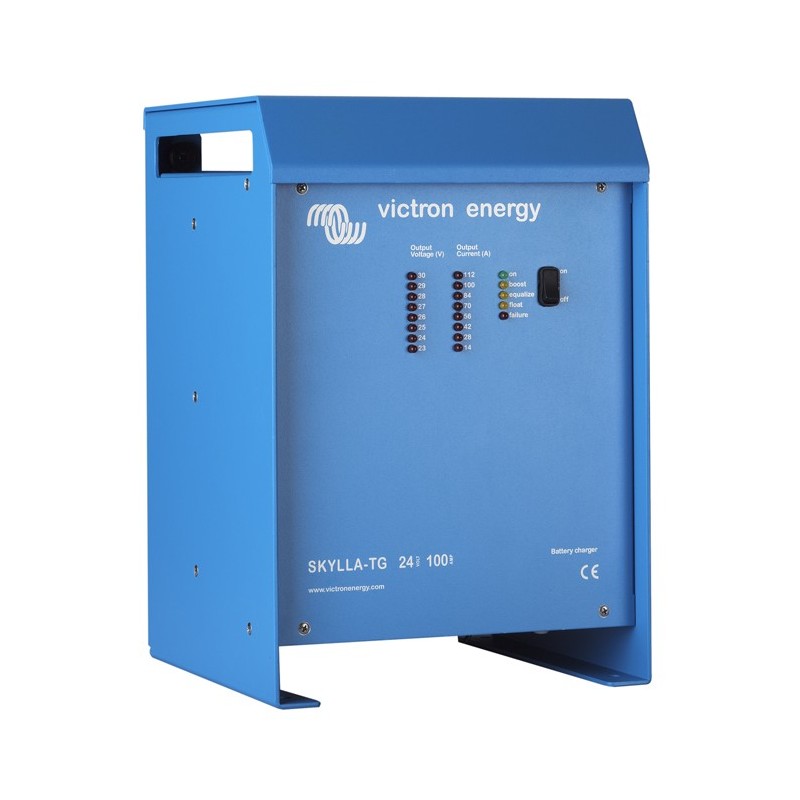

Skylla Tg Charger 24v/100a (1+1) Victron

Victron Energy Skylla TG 24/100 Battery Charger (1 + 1). Two independent outlets: one full and one limited to 4 amps. The charging voltage can be precisely adjusted to suit any battery system. The charger input is 230 V at 50/60 HZ. The charging voltage can be measured directly at the battery terminals to compensate for the voltage loss due to resistance of the cables. An external temperature sensor allows the charging voltage to be reduced when the battery temperature rises.

Supply voltage (VAC): 230
Supply voltage range (VCC): 185-264
Supply voltage range (VAC): 180-400
Frequency (Hz): 45-65
Power factor: 1
Charge Voltage 'Absorption' (VCC): 28.5
Charging voltage 'float' (VCC): 26.5
Main Charge Current (A): 100
Auxiliary Charge Current (A): 4
Charging characteristics: 3 charging stages
Battery capacity (Ah): 500-1000
Temperature sensors: Yes
Usable as a power supply: Yes
Regulated forced ventilation: Yes
Operating temperature: -40 to + 50 ° C (-40 -122 ° F)
Humidity (non-condensing): max 95%.
