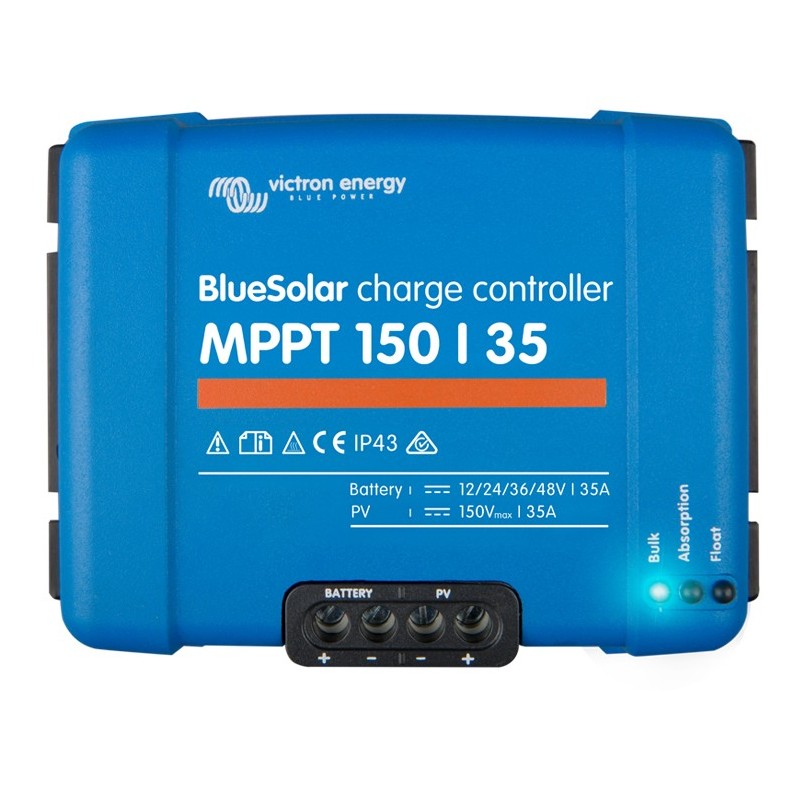

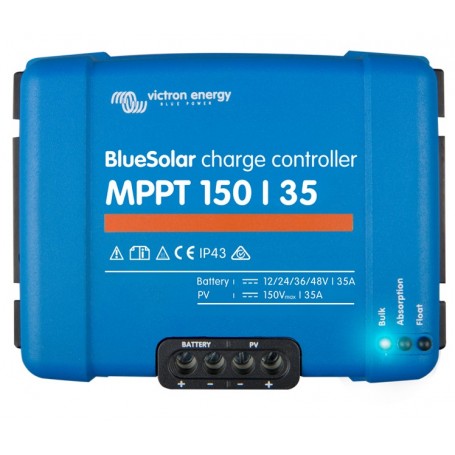

Blue solar mppt charger 150v/35a (12/24/48v-35a) victron

Solar chargers collect energy from your solar panels and store it in your batteries. Using the latest and fastest technology, the BlueSolar maximizes this energy harvest, managing it intelligently to reach the maximum load in the shortest possible time. The BlueSolar takes care of the health of the battery, extending its useful life.

Dimensions 130x186x70 mm. Weight 1.3 kg.

Battery voltage: Automatic selection: Automatic selection: 12/24/36/48 V (a software tool is required to select 36 V).
Rated load current: 35A.
Nominal PV power: 12V: 500W / 24V: 1000W / 36V: 1500W / 48V: 2000W.
Max. Short circuit current: 640A.
Maximum PV open circuit voltage: 150V absolute maximum in coldest conditions, 145V at startup and operating at maximum.
Maximum efficiency: 98%.
Self-consumption: 12V: 20 mA 24V: 10 mA.
"Absorption" charging voltage: 14.4 / 28.8 / 43.2 / 57.6 V.
"Float" charging voltage: 13.8 / 27.6 / 41.4 / 55.2 V.
Charging algorithm: multistage variable.
Temperature compensation: -16 mV / ° C, -32mV / ° C resp.
Protection: Reverse polarity of the battery (fuse). Output short circuit / overheating.
Working temperature: -30 to + 60 ° C (full nominal power up to 40 ° C).
Humidity: 95%, non-condensing.
