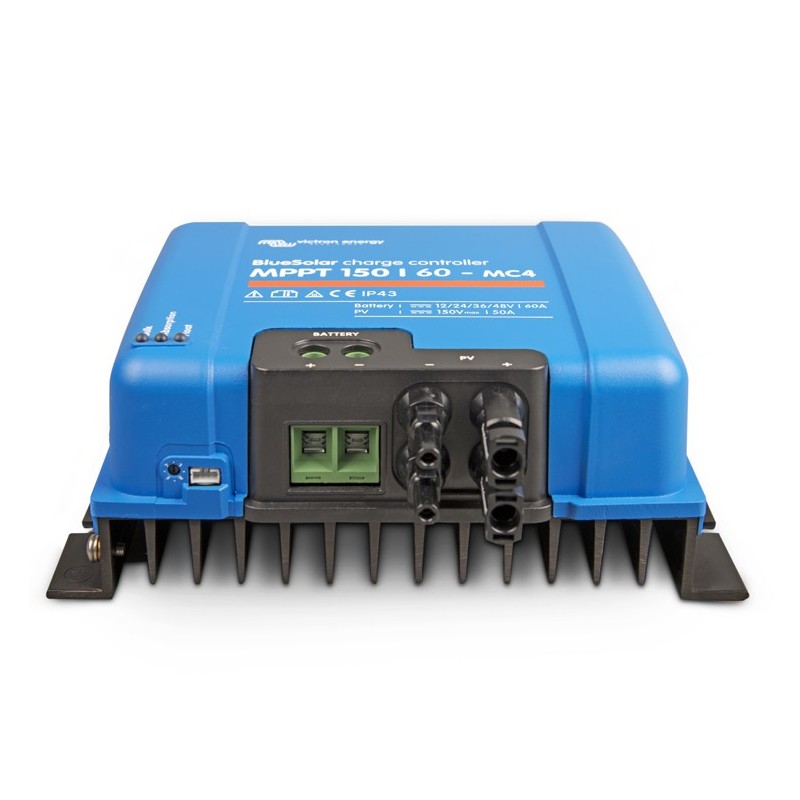

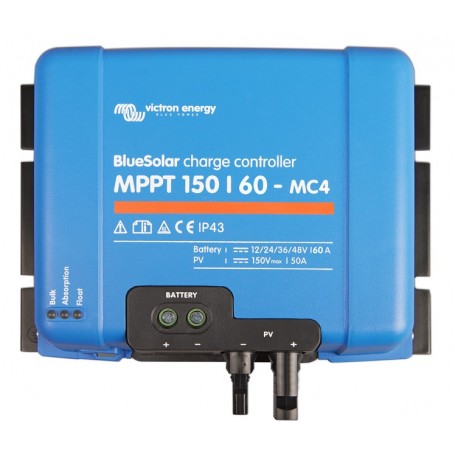

Bluesolar mppt charger 150/60a mc4 victron

Solar chargers collect energy from your solar panels and store it in your batteries. Using the latest and fastest technology, the BlueSolar maximizes this energy harvest, managing it intelligently to reach the maximum load in the shortest possible time. The BlueSolar takes care of the health of the battery, extending its useful life.

Battery voltage: Automatic selection: 12/24/36/48 V (a software tool is required to select 36 V).
Rated load current: 60A.
Nominal PV power, 12V: 860W.
Nominal PV power, 24V: 1720W.
Nominal PV power, 48V: 3440W.
Max. Short circuit current: 50A.
Maximum PV open circuit voltage: 150V absolute maximum in coldest conditions, 145V at startup and operating at maximum.
Maximum efficiency: 98%.
Self-consumption: 10mA.
"Absorption" charging voltage: Default values: 14.4 / 28.8 / 43.2 / 57.6 V (adjustable).
"Float" charge voltage: Default values: 13.8 / 27.6 / 41.4 / 55.2 V (adjustable).
Charging algorithm: multistage variable.
Temperature compensation: -16 mV / -32 mV / -64 mV / ° C
Protection: Reverse polarity of the battery (fuse, not accessible by the user). Reverse polarity PV. Output short circuit. Over temperature.
Working temperature: -30 to + 60 ° C (full nominal power up to 40 ° C).
Humidity: 95%, non-condensing.
