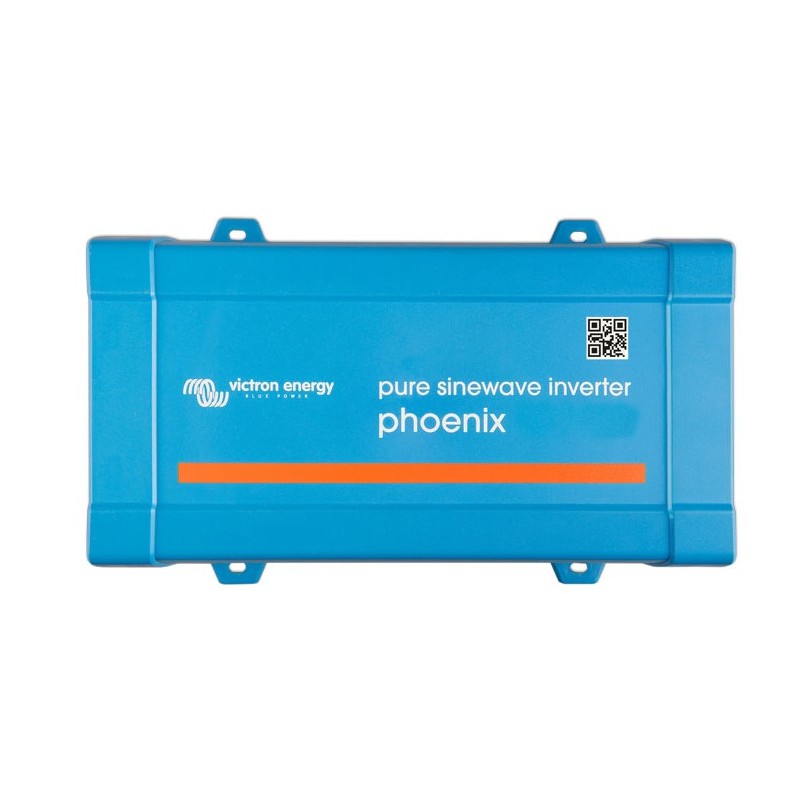

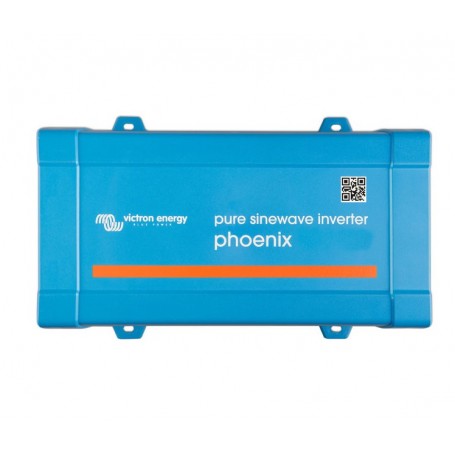

Phoenix inverter 24v/250a ve.direct schuko victron

The inverters allow you to power 230V / 120V AC household equipment with "service" or "automotive" batteries with nominal powers of 12V, 24V or 48V DC.

Dimensions 86x165x260. Weight 2.4 kg.

The VE.Direct port can be connected to:
- A computer (requires VE.Direct to USB interface cable)
- Apple and Android smartphones, tablets, mackbooks and other devices (requires a VE.Direct to Bluetooth Smart dongle).


Power cont at 25 ° C (1): 250VA.
Power cont. at 25 ° C / 40 °: 200 / 175W.
Peak power: 400W.
Output AC voltage / frequency (adjustable): 230VAC or 120VAC +/- 3% 50Hz or 60Hz +/- 0.1%.
Input voltage range: 9.2 - 17 / 18.4 - 34.0 / 36.8 - 62.0V.
Low DC Disconnect (adjustable): 9.3 / 18.6 / 37.2V.
Reset and low DC alarm (adjustable): 10.9 / 21.8 / 43.6V.
Battery charged detector (adjustable): 14.0 / 28.0 / 56.0V.
Max efficiency: 88%.
No-load consumption: 5.2W.
Default no-load consumption in ECO mode
(Retry interval: 2.5 s, adjustable): 1.3W.
ECO mode start and stop power setting: Adjustable.
Protection (2): a - f.
Operating temperature range: -40 to + 65 ° C (fan cooled) (1.25% derating for every ° C above 25 ° C).
Humidity (non-condensing): max. 95%.
