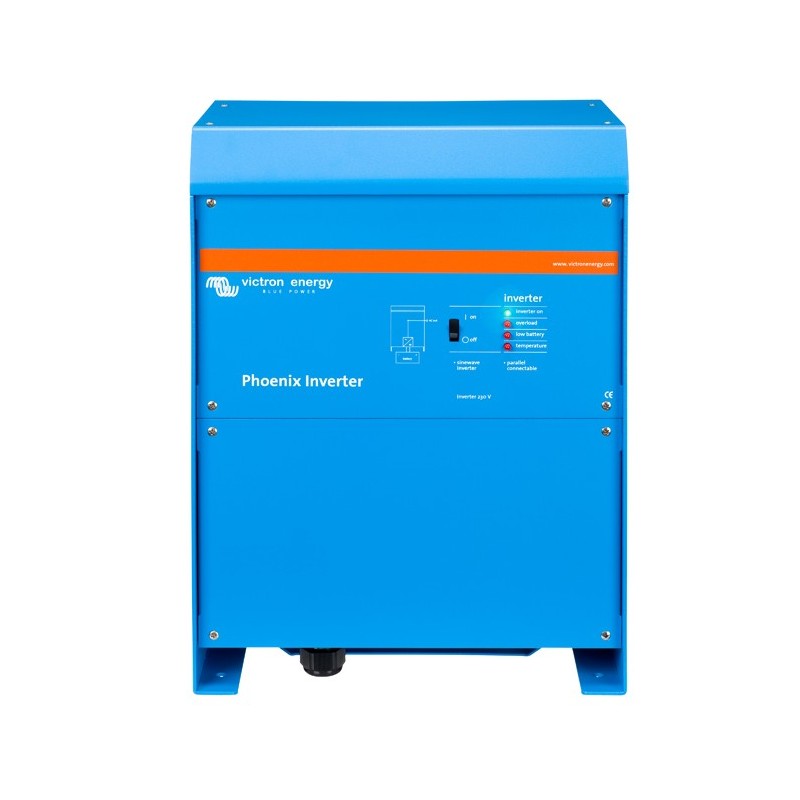

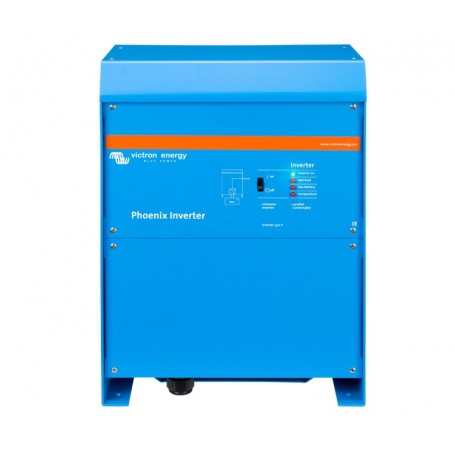

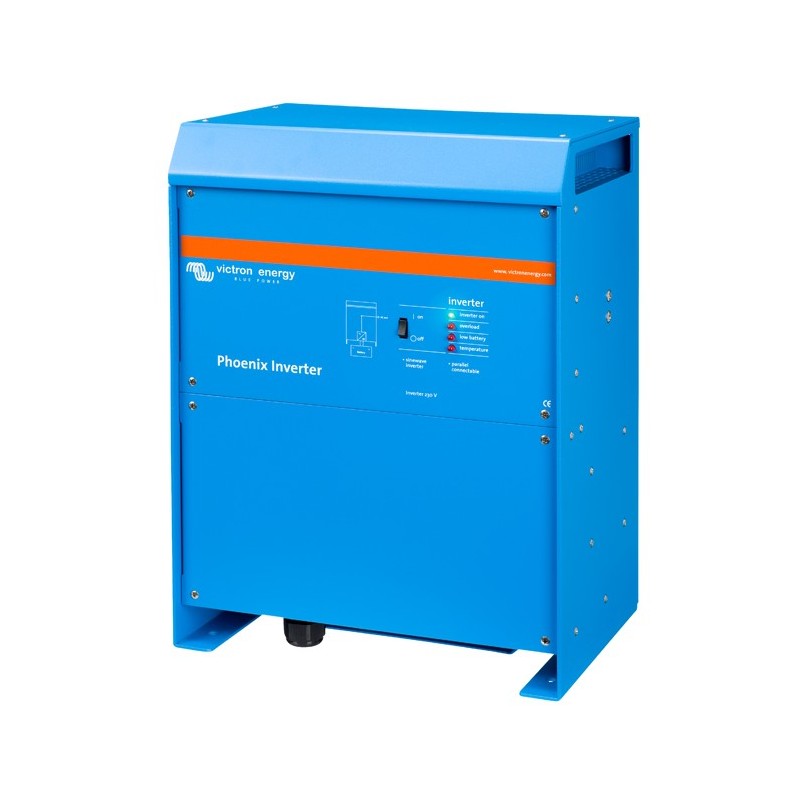

Phoenix inverter 24v/3000a 120v victron

Phoenix 24/3000 inverter with pure sinusoidal output, high power and high efficiency. The combination of high frequency and line frequency technology ensures the best of both worlds. Expandable: up to six Phoenix inverters can be connected in parallel, in single-phase, two-phase or three-phase configuration. New and improved design, very high peak power.

Dimensions 362x258x218. Weight 18 kg.

Parallel and three-phase operation: Yes.
Input voltage range (V DC): 9.5 - 17V 19 - 33V 38 - 66V.
Output: 230V ± 2% / 50 / 60Hz ± 0.1% (1).
Power cont. output 25 ° C (VA) (2): 3000.
Power cont. outlet 25 ° C (W): 2400.
Power cont. outlet 40 ° C (W): 2200.
Power cont. outlet 65 ° C (W): 1700.
Peak power (W): 6000.
Max efficiency 12/14/48 V (%): 93.
Consumption without load 12/24/48 V (W): 20.
No-load consumption in AES mode (W): 15.
Search mode idle consumption (W): 8.
